Features
- Frequency range 860 MHz to 960 MHz
- Support multi communication interfaces
- 7 dbi circular polarization antenna, the height of antenna adjustable
- RF output power 20 dBm to 30 dBm adjustable
- Reliable industry structure design, workable in varied severe environment
- Sound and light alarm
Technical Specifications
| Frequency | 860 MHz to 960 MHz |
| Protocol | ISO18000 6 C (GEN 2) or 6 B |
| Gain | 7 dBi |
| Operation Mode | Fixed Frequency or Software Control |
| RF Power | 0 dBm to 30 dBm Software Control and adjustable |
| Working Mode | Passive and active for reading can control by software |
| Communicate Port | Wiegand26 34 98 Rs 232 Rs 485 TCP or IP |
| Input Interface | 1 way Trigger input |
| Reading Range | 3.28 ft to 13.12 ft (1 m to 4 m) |
| Working Model | LED Light (Green) Red LED When Alarm |
| Power Supply | DC + 220 V + – 10 % |

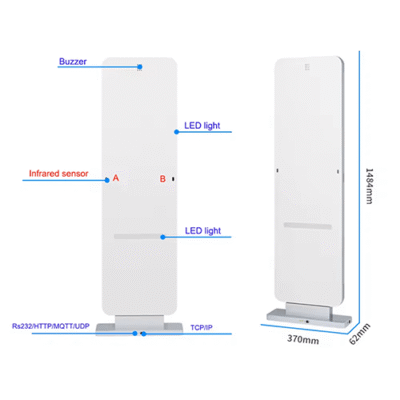

| Size | 14.96 in x 2.44 in x 56.69 in (380 mm x 62 mm x 1440 mm) |
| Weight | 167.55 lbs (76 kg) |
