Overview

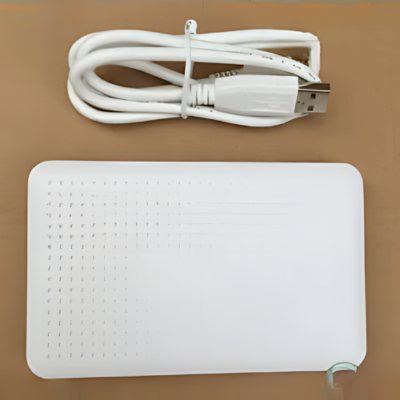

The Inventory Master RFID UHF Desktop Reader with USB Interface is a new and innovative antenna built-in integrated RFID Reader that is compatible with IS018000 and EPC Class 1 Gen2 of RFID tags. It solves many problems successfully associated with remote identification, identification of fast moving objects and multi-card identification for The Passive RF tag. This RFID Reader’s design includes a Weigand port, a RS 485 port and a RS 232 output interface. This product exceeds the basic capability recommended by the advanced technology indicators. Top of Form.
Technical Specifications
| Working Frequency | ISM 902 MHz to 928 MHz, Available To Customize 860 MHz To 960 MHz |
| Support Protocol | ISO18000-6B Or ISO18000-6C Or EPC Class1G2 |
| Working Mode | FHSS Or Fixed Frequency Set By Software |
| Transmit Power | 0 Dbm To 18 Dbm (1 MW To 1000 MW) |
| Read Speed | The Average Read Time For Single Card Is Less Than 6ms Per 64 Bits |
| Read Type | Automatically Reading Card At Regular Time, Can Set Reading Card Way |
| Data Output | Wiegand 26 Or 34 Port, RS 232, RS 485, TCP Or IP (Customize), CANBUS (Customize) |
| Data Input | One Group Of Triggering Input Signal |
| Antenna | Build-In Linear Polarization Antenna, Gain 12 DB |
| Power Supply | Adapter (Into +12 V DC) |
| Power Consumption | Less Than 6 W |
| Read Distance | 9.84 ft To 19.68 ft (3 m to 6 m) (According To Tag), Can Adjust By Software |
| Read Prompt | Buzzer And Led |
| Working Temp | – 4 ºF to + 176 ºF (- 20 ºC To + 80 ºC) |
| Dimension | 9.05 in x 9.05 in x 2.28 In (230 mm × 230 mm × 58 mm) |
| Weight | 2.20 lb (1 kg) |
