Overview

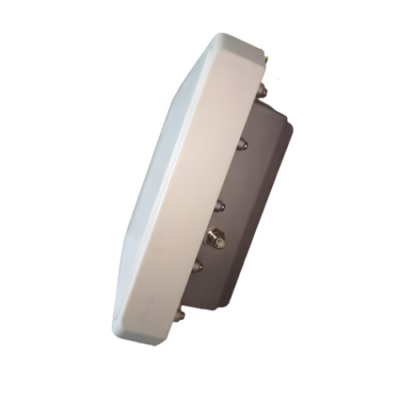

The Inventory Master Rs232 Passive Integrate Wireless Gate UHF RFID Reader is a high-performance four-channel RFID fixed reader, supports EPC Gen2 & ISO18000-6B& 18000-6C&IP-X (18000-6D) UHF RFID protocol and supports multi-protocol automatic identification and mode switching. It is designed according to the standard and meets industrial-grade wide voltage input mode. The power input and signal are isolated with an isolation voltage of 2 K V. The wide voltage input and industrial-grade wide temperature operating temperature meet ultra-long and stable work time; industrial-grade serial port or network port output to meet high-speed automatic real-time data transmission.
Features
- Makes full use of the advantages of Thingmagic
- Excellent tag chip compatibility
- Supports Cool Log tag chip
- Supports multiple protocols
- Fully supports the ThingMagic Mercury API
- Can easily customize the interface
Technical Specifications
| Frequency | FCC (NA, SA) 902 MHz to 928 MHz or ETSI (EU, India) 865.6 MHz to 867.6 MHz or TRAI (Inida) 865 MHz to 867 MHz or KCC (Korea) 917 MHz to 920.8 MHz or ACMA(Australia) 920 MHz to 926 MHz or SRRC-MII (P.R.China) 920 MHz to 925 MHz MIC (Japan) 916.8 MHz to 923.4 MHz |
| Protocol | ISO 18000-6C |
| Label Recognition Rate | 750 tags per s |
| Operating Mode | Fixed frequency or frequency hopping |
| Maximum Output Power | 31.5 dBm |
| Antenna | 4-way TNC antenna connector |
| Operating System | Linux 4.4 (700 MHz, 256 MB DDR, 256 MB Flash) |
| Network | TCP or IP |
| RFID Module | Thingmagic M6e-Micro |
| RF Connectors | Integrated 1 X 8dbi ANT or 1 X TNC Port |
| Max Read Rate | 750 tag per s |
| RF Power Output | -5 dbm to + 30 dbm |
| Power Signal ESD | ± 8 kV (contact); ± 15 kV (air) |
| Antenna Signal ESD | ± 2 kV (contact); ± 15 kV (air) |
| Programming Interface | Java, C |
| Degree Of Protection | IP 67 |
| Standard Accessories | AC Adaptor |
| Humidity | 5 % to 95 % (non-condensing) |
| Operating Temperature | -40 °F to 140 °F (-40 °C to 60 °C) |
| Storage Temperature | -40 °F to 185 °F (-40 °C to 85 °C) |
| Size | 10.9 in x 10.9 in x 3.9 in (260 mm x 260 mm x 100 mm) |
| Weight | 4.8 lb (2.2 kg) |
