Overview

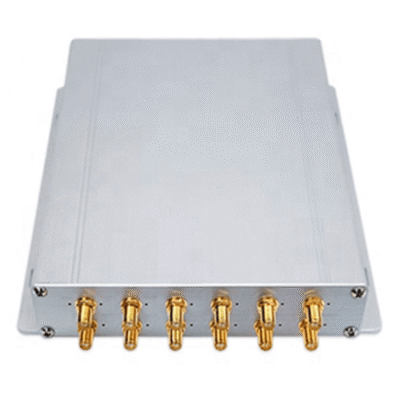

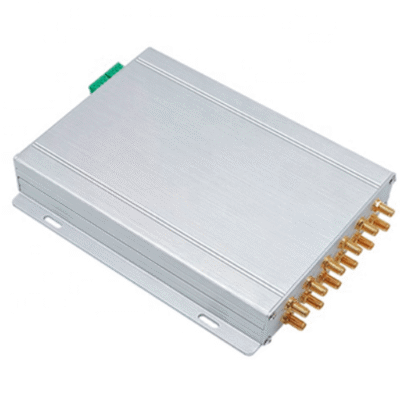

RD5212 readers have three communication interfaces: Ethernet LAN port, RS232 interface, and USB interface, users can choose different communication interfaces to connect according to their needs, as described below:
- Connect PC and reader via network cable: use a cross-connect network cable to connect the PC and the reader, or connect the PC and the reader through a network switch. Note: If the PC supports automatic cross-direct connection, you can use a common network cable to connect.
- Connect PC and reader via RS232 serial cable: this device can be connected via RS232 serial cable or USB To RS232 converter.
- Connect the PC and the reader via the USB cable.
Features
- Support ISO 15693 and ISO 18000-3M1 standards.
- RF power: 1~8W(adjustable).
- Antenna interface: adopts multi-antenna interface design, which can connect to 30 antennas;
- Support noise detection, and be able to detect whether the environment has interference.
- Fast anti-collision processing algorithm; the speed of reading the tag is up to 70pcs / sec
- Reading and writing range: A single antenna can reach 118cm (antenna size: 560*650mm); (this distance is related to card performance and antenna size).
- Communication interface: RS232, RS485, Ethernet, USB, CAN.
- With short circuit protection and overheat protection function.
- Support antenna standing wave detection.
Technical Specifications
| Operating Frequency | 13.56 MHz |
| Protocol | ISO 15693 |
| RF Power | 1 to 8W (configurable, the system default setting is 4W) |
| Supply Voltage | 12V DC |
| Maximum Power Consumption | ≤35W |
| Size | 7.874 inches × 6.614 inches × 1.2992 in (200x168x33mm) |
| Maximum Operating Temperature | 122 F (50℃) |
