Overview

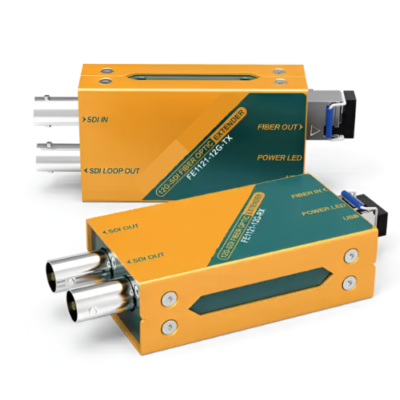

The Inventory Master SFP fiber converter is a transmitter or receiver kit supporting single-mode LC simplex fiber extensions up to 6.21 mi (10 km). It is a miniature-style extension solution that supports all SDI formats resolutions up to 4k at 60Hz with audio and metadata, also supports level A and level B for 3 G-SDI. It features a local SDI loop out and dual SDI outputs and supports SD or HD or SD or 3 G or 6 G or 12 G to SDI signals. It is also compatible with multimode fiber.
Features
• 6.21 mi (10 km) transmission distance
• Support 12 Gb/s all formats, including 3 G level A and level B
• SFP module with LC connector
• 12 G-SDI input & loop out on transmitter
• Dual 12 G-SDI outputs on receiver
• SDI input automatic switching SD, HD, 3 G, 6 G & 12 G
• 5 V USB power supply
Technical Specifications
| Transmitter SDI Video Input | SD or HD or 3 G or 6 G or 12 G to SDI or ASI (75 Ω) × 1 |
| Transmitter SDI Loop Output | SD or HD or 3 G or 6 G or 12 G to SDI or ASI (75 Ω) × 1 |
| Transmitter Fiber Optical Output | SFP module (LC) × 1 |
| Receiver Fiber Optical Input | SFP module (LC) × 1 |
| Receiver SDI Video Output | SD or HD or 3 G or 6 G or 12 G to SDI or ASI (75 Ω) × 1 |
| Optical Fiber Module | SFP module: Hot-Pluggable,Connector style: LC,Fiber type: Single mode,Optical wavelength: 1310 nm,Max. bandwidth: 12 Gbps,Optical transmit power: -4 dBm,Receiver sensitivity: -12 dBm |
| Single-mode Max.Distance | 12.5 mi (10 Km) for 12 G (4 K 60 P) |
| Optical Fiber Compliance | SMPTE 297 M |
| SDI Compliance | SMPTE ST-2081, SMPTE ST-2082, SMPTE 259M, SMPTE 292 M, SMPTE 296 M, SMPTE 424M-B, ITU-R BT.656, ITU-R BT.601, SMPTE 274M, SMPTE 425 M |
| SDI Auto Switching | SD or HD or 3 G or 6G or 12 G to SDI on input |
| SDI Video Rate | SD or HD or 3 G or 6G or 12 G to SDI |
| SDI Color Space | YUV, RGB |
| SDI Equalization and Re-clocking | Yes, SDI input and output support up to 196.85ft (60 m) for 12 G to SDI |
| SDI Audio | Supports 32 or 16 channels embedded |
| Power | Micro USB |
| Power Consumption | 1.5 W |
| Voltage Range | 3.3 V to 5 V |
| Operating Temperature | -4 ⁰F to 140 ⁰F (-20 ⁰C to 60 ⁰C) |
| Storage Temperature | -22 ⁰F to 158 ⁰F (-30 ⁰C to 70 ⁰C |
| Relative Humidity | 0 % to 90 % non-condensing |
| Dimension (LWD) | 2.79 in × 1.61 in × 0.90 in (71 mm × 41 mm × 23 mm |
| Weight | 0.44 + 0.44 lb. (200 + 200 g) |
