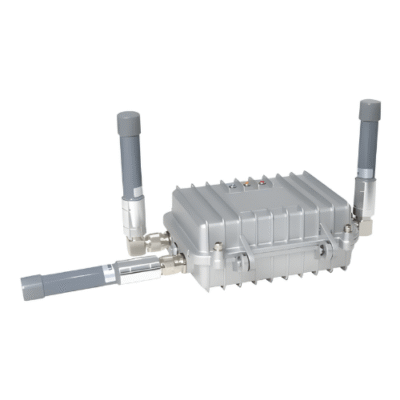

Overview
The Inventory Master smart lora wan outdoor gateway is Iot data transmission based on low power Lora Wan protocol, sub g, 4G, which can provide a convenient, efficient and safe communication bridge for thousands of devices and customer application platform. Lora Wan gateway is designed specifically for agricultural and industrial Internet of things. It is equipped with a high efficiency processor and provides two massive terminal access. In addition, it is also an effective communication platform for large scale installation and application of the Internet of things.
Technical Specifications
| Nominal Voltage | 9.6 V |
| Maximum Voltage | 10.95 V |
| Work Frequency Band | 433 MHz to 470 MHz and 780 MHz, 868 MHz, 915 MHz |
| Frequency Error | 10 ppm |
| Transmitting Power | 20 dBm |
| Receiving Sensitivity | -140 dBm |
| Transmission Speed | 0 kbps to 300 kbps |
| Nominal Capacity | 3200 mAh |
| Minimum Capacity | 3150 mAh |
| Communication Distance | Indoor distance, 1.5 km and Outdoor distance, 3.5 km |
| Battery Model | ER 18505 M |
| Working Temp | -40 °F to 185 °F (-40 °C 85 °C) |
| Storage Temp | -40 °F to 257 °F (-40 °C to 125 °C) |
| Size | 25.59 in x 13.39 in x 4.92 in (650 mm x 340 mm x 125 mm) |
| Weight | 0.57 Ib (260 g) |
