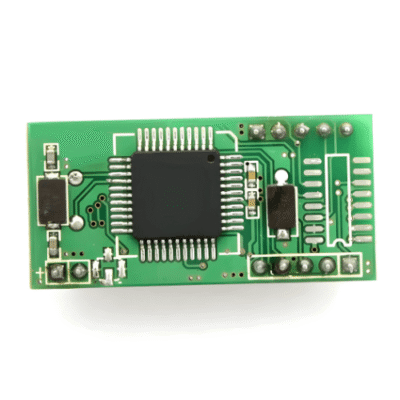

The Inventory Master SO-14443 NFC RFID About Integrated Circuit HF USB RFID Reader Module

Name: The Inventory Master SO-14443 NFC RFID About Integrated Circuit HF USB RFID Reader Module - The Inventory Master
SKU: TIMNFCRFID-105

User standard ISO 14443-A at 13.56 MHz. Powered by 3.3 V, <70 mA. Standard protocol is ISO-14443 A. Supports 5 V or 3.3 V power supply.

SKU: TIMNFCRFID-105 Category: Bluetooth Low Energy (BLE)

Technical Specifications

Read-Write Chip	MFRC-522
Baud Rate	9600
Standard	ISO 14443-A
Frequency	13.56 MHz
Supporting Card	Mifare S-50, S-70, Ultralight and Mifare Pro
Interface	TTL and RS-232
Power Supply	3.3 V
Current	<70 mA
Interface	USB, Serial Port, RS-232, RS-485, WG-26 and WG-34
Protection Level	IP-65
Reading Range	0 cm to 0.32 ft (10 cm)
Read or Write	Read UID Only or Read Write for Option
Power Supply	5 V or 3.3 V
Protocol	ISO-14443 A
Support Chips	Em-4200, Tk-4100, T-5577, Em-4305, NFC and UL
Operating Temperature	14 °F to 122 °F (-10 °C to 50 °C)
Storage Temperature	-4 °F to 176 °F (-20 °C to 80 °C)
Specification	1.53 in X 0.74 in X 0.35 in (39 mm X 19 mm X 9 mm)
Weight	10.58 oz (300 g)
