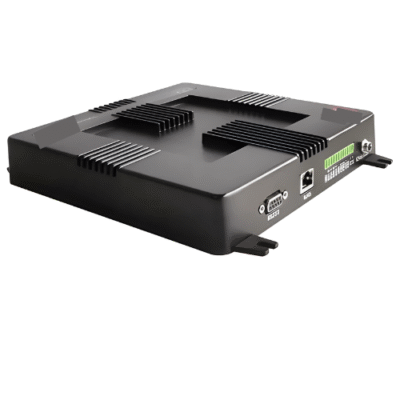

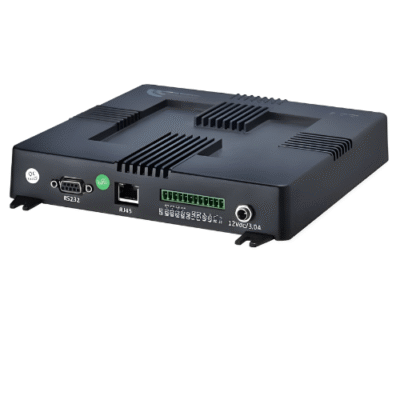

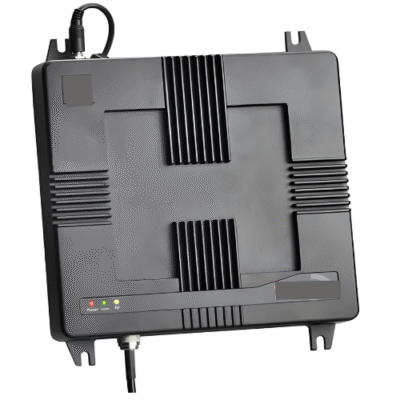

The Inventory Master TCP or IP Reader UHF RFID Timing System – RF Output 33 dBm ± 1 dBm

An unparalleled RFID capabilities 902 MHz to 928 MHz, 33 dBm power, 82 ft (25 m) read range, API support, and has versatile connectivity options.

SKU: TIMUHF-715 Category:

Technical Specifications

Frequency902 MHz to 928 MHz or 865 MHz to 868 MHz
ProtocolEPC Global UHF class1 Gen2 or ISO 18000-6C
Reading Distance3.2 ft to 82.0 ft (1 m to 25 m)
Power SupplyWith 220 V AC input, the output of +12 V or 3 A DC power converter
SoftwareProvide demo software and API based Android or iOS platform system
ApplicationStock checked or warehouse or access or human management
CertificateCE FCC RoHS
RF Output33 dBm ± 1 dBm
RF Output Adjust1 dBm each step
Receive Sensitivity< -85 dBm
Tag Reading Speed< 800 times per second
Tag Reading Distance0 ft to 82.0 ft (0 m to 25 m) (depend on reader parameter set, antenna gain, tag type etc.)
Tag Writing Distance0 ft to 32.8 ft (0 m to 10 m) (depend on reader parameter set, antenna gain, tag type etc.)
Tag RSSISupport
Antenna Connect ProtectionSupport
Antenna Ports4 TNC antenna ports
Communication Port0 M or 100 M tcp or ip internet, RS232, RS485, Wiegand26 or 34
WIFISupport EEE 802.11 n/b/g
BluetoothSupport Bluetooth 4.0
Communication RateRS232 with 9600 bps to 115200 bps, RJ45 with 10Mbps
Reliable UpgradeUpgrade mechanism can be extended
Input or Output2 inputs, 1 output
SDK LanguageVC, VB, JAVA, C#, C++ etc.
Power SupplyWith 220 V AC input, the output of +12 V or 3 A DC power converter
Reader Antenna Port TypeTNC Female connector
ESD± 15 kv air discharge, ± 8 kv direct discharge
Drop Specification5 ft (1.5 m) drop to concrete across the operating temperature range
Humidity5 % to 95 %, non-condensing
Operating Temperature-4 °F to 140 °F (-20 ℃ to 60 ℃)
Storage Temperature-40 °F to 176 °F (-40 ℃ to 80 ℃)
Weight4.4 lb (< 2 kg)
