Overview

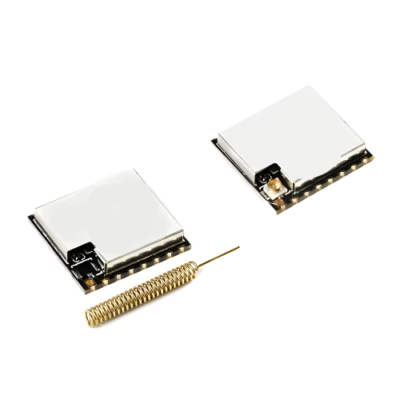

The Inventory Master Transmit LoRa Module utilizes the RF chip LLCC 68, which employs LoRa™ remote modem technology, offering exceptional anti-interference capabilities and low power consumption. With a remarkable sensitivity of over -129 dBm, a 20 dBm power output, and SEMTECH’s LoRa™ patent modulation technique, this module delivers extended transmission ranges and high reliability.
Features
- LoRa™ Modem
- Versatile Modulation Modes
- Wide Frequency Range
- Low Power Consumption
Technical Specifications
| Chipset | LLCC 68 |
| Supplier Type | Wireless Transmit RF Module |
| Application | Automatic Meter Reading, Security System |
| Model | Ra-01 SC |
| Package | SMD 16 |
| Antenna | Half / Through-Hole Pad / IPEX |
| Frequency Range | 410 MHz to 525 MHz |
| Operating Temperature | -40 °F to 85 °F (-40 °C to 85 °C) |
| Storage Environment | -40 °F to 125 °F (-40 °C to 52 °C), <90% RH |
| Power Supply | 2.7 V to 3.6 V, Typical Value 3.3 V, Recommended Current >200 mA |
| Support Interface | SPI |
| Programmable Bit Rate | Max Up to 300 Kbps |
| Size | 0.67 in x 0.63 in x 0.13 in (17 mm x 16 mm x 3.2 mm) |
