Overview

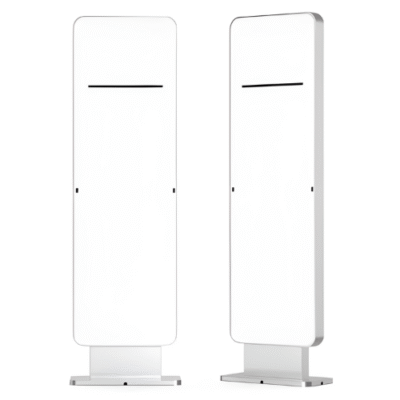

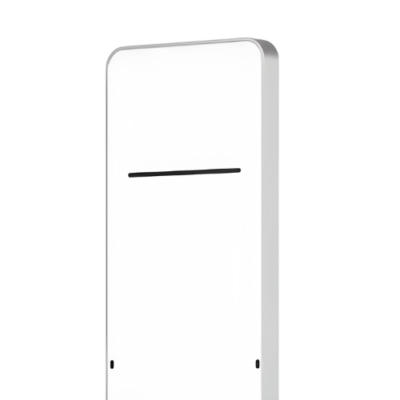

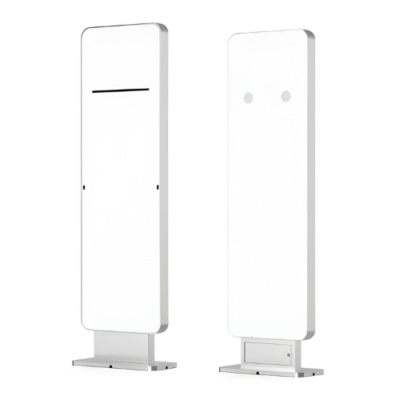

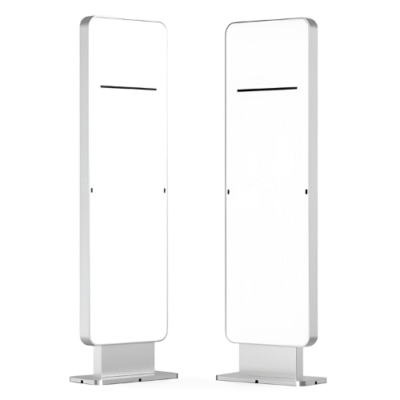

The Inventory Master UFH RFID portal for access control is a new generation based on TM series ultra-high frequency portal developed by our company. used for reading. The reader has the advantages of superior performance, convenient use, wide application, safety, reliability and stability Practical and other features, and has fast anti-conflict analysis and read and write processing capabilities, supports RS232, RS485, RJ45 and other communications inter-face, which can be directly connected to the host, controller and other related equipment.
Features
- Embedded data encryption
- Dynamic antenna configuration
- Real time location tracking
- Intergrated with access control systems
- Multi-protocol support
- Android OS
Technical Specifications
| Frequency | 865 MHz to 868 MHz or 920 MHz to 925 MHz 902 MHz to 928 MHz |
| Protocol | ISO18000-6C (EPC C1 G2) |
| Chip | JT 2540 module based on TM serial chip |
| Antenna | 8 dBi circularly or linear polarized antenna (built in) |
| Reading Rate | > 700 times per sec |
| Interface | TCP or IP RS232 RS485 |
| RF Power | 0 dBm to 33 dBm (adjustable) |
| RSSI | Supported |
| Trigger Mode | Two infrared trigger inputs |
| Communication Interface | RS232 RJ45(standard) WiFi 4 G (optional) |
| Notification | Buzzer or flashing light (optional) |
| Android OS | Android 9.0 |
| Screen | 15.6 inch touch screen (one main door) |
| Consumption | DC 9-36V/3A |
| Read Distance | > 16.40 ft (5 m) |
| SDK | Demo & C++ C# JAVA Android SDK |
| Humidity | 5 % to 90 % |
| Storage Temp. | – 22 °F to 176°F (- 30 °C to 80 °C) |
| Operating Temp. | – 4°F to 158 °F (- 20 °C to 70 °C) |
| Dimensions | 57.1 in x 23.6 in x 3.5 in (1450 mm x 600 mm x 90 mm) |
| Net Weight | 33.07 lb (15 Kg) |
