Overview

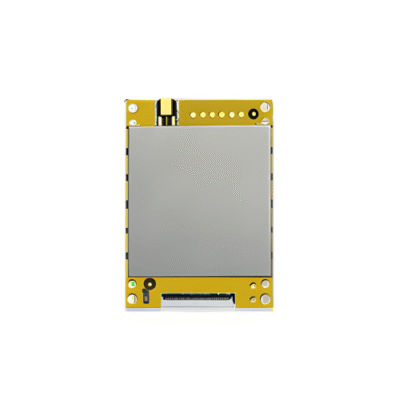

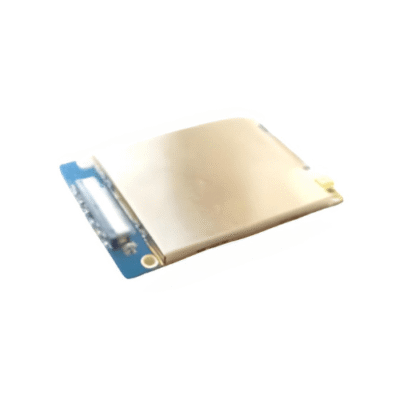

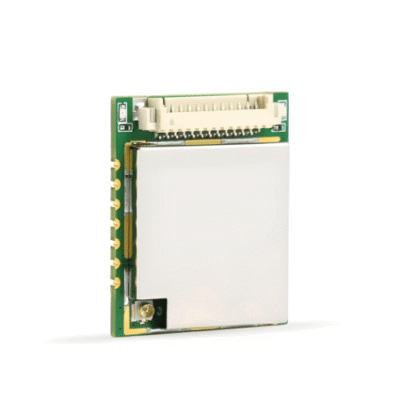

The Inventory Master UHF 860 MHz to 960 MHZ 1 Port Long Range RFID Reader is a miniaturized UHF RFID reader module. It is a high performance and highly integrated reader IC which integrates analog RF front-end and base band digital signal processing module. Users only need to do the power processing on the basis of the module. They can work conveniently through the API function library control module which is suitable for the development of all kinds of applications scenarios.
Technical Specifications
| Frequency | 860 MHZ to 960 MHz |
| Protocol | ISO18000-6 C and ISO 18000-6C (EPC C1G2) |
| Type | RFID Reader Module |
| Application | Warehouse Management |
| Read Range | 32.80 ft (10 m) |
| Tag Recognition Speed | >900 Times per Second |
| RF Power | 0 dBm to 33 dBm |
| Communication Port | UART +3.3 V |
| RF Output Power | 33 dbm to ±1 dbm |
| Output Power Regulation | ±1 dbm |
| Test Condition | 8 dBi Polarized Antenna and RF Connection 1 dB |
| Continuous Write Label Distance | 13.12 ft (4 m) |
| Antenna Port | 8 SMA |
| Certification | RoHS |
| Working Temperature | -4 °F to 149 °F (-20 °C to 65 °C) |
| Storage Temperature | -40 °F to 185 °F (-40 °C to 85 °C) |
| Size | 3.58 in x 3.11 in x 0.29 in (91 mm X 79 mm X 7.6 mm) |
| Weight | 2.20 lb (1 kg) |
