Overview

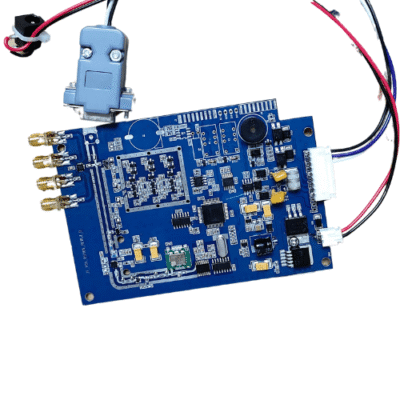

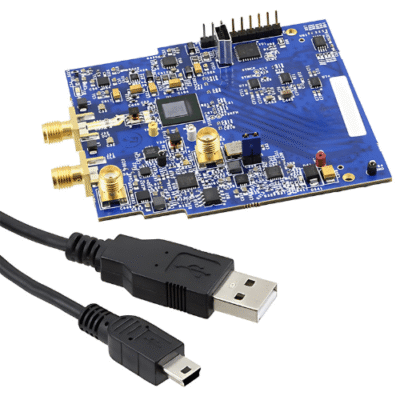

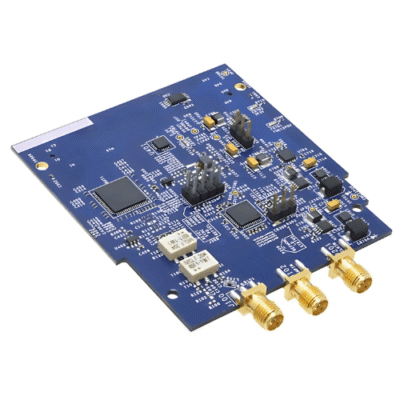

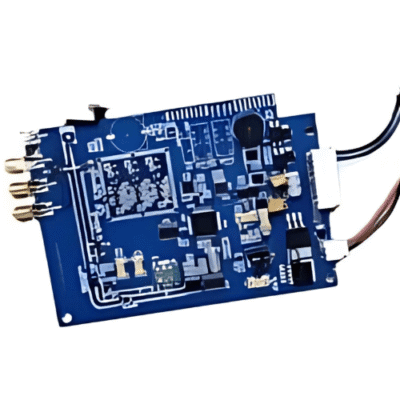

The Inventory Master UHF 860 MHZ to 960 MHZ access control RFID reader module is a low power consumption, high performance of ultra-high frequency reader module, using high performance, high integration of RF chip scheme design, with low power consumption, high cost performance, small volume and other characteristics. It can be widely used in logistics tracking, commodity inventory, goods sorting, vehicle management, personnel management, asset management, medical system, cold chain management, temperature monitoring, power monitoring, anti-counterfeiting system and production process control and other applications.
Features
- Design scheme of RF transceiver chip based on low power consumption and high integration
- Working frequency 860 MHz 960 MHz
- Supports electronic tags meeting the ISO 18000-6 C (EPC Global UHF Class 1 Gen 2) standards
- Optimized multi-label inventory algorithm and the inventory label speed is greater than 100 Sheet per Second
- Work with wide spectrum Frequency Hopping (FHSS) or fixed frequency transmission
- RF output power up to 26 dBm
- Support for UART serial communication interface (3.3 V TTL level)
- Support Wiegand data communication interface
- Integrated design, without an external antenna
Technical Specifications
| Type | RFID Reader Module |
| Working Frequency | 860 MHz to 960 MHz |
| Application Field | Access Control |
| Power Supply | 3.3 V TTL |
| Working Voltage | DC 5.0 V (+3.7 V to +5.5 V) |
| Supporting Card | Alien H 3 |
| Reading Distance | 6.56 ft (2 m) |
| Antenna Gain | 2 dBi |
| Normal Current | 5 V |
| Identify Distance | > 6.56 ft (2 m) |
| Wiegand | Wiegand 26 |
| Multi-tags Reading | ≥200 Tags per Second |
| IP Rating | IP-64 |
| RF Output Power | 26 dBm |
| RF Output Power Flatness | 1 dBm |
| Maximum Current | <200 mA or DC 5 V |
| Interface Communication Rate | 115200 bps |
| Ethernet Port | 100 MHz |
| Working Humidity | 5% RH to 95% RH |
| Protocol | ISO 18000-6 C (EPC Global UHF Class 1 Gen 2) |
| Working Temperature | -4 °F to 140 °F (-20 °C to 60 °C) |
| Storage Temperature | -40 °F to 176 °F (-40 °C to 80 °C) |
| Size | 1.96 in X 1.96 in X 0.39 in (50 mm X 50 mm X 10 mm) |
| Weight | 1.41 oz (40 g) |
