Overview

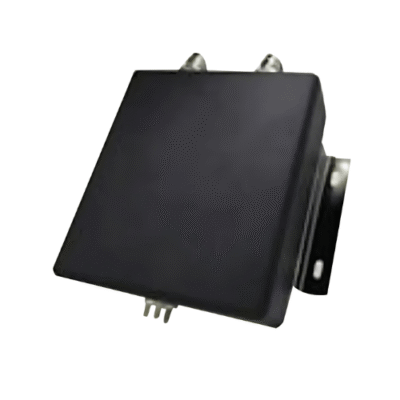

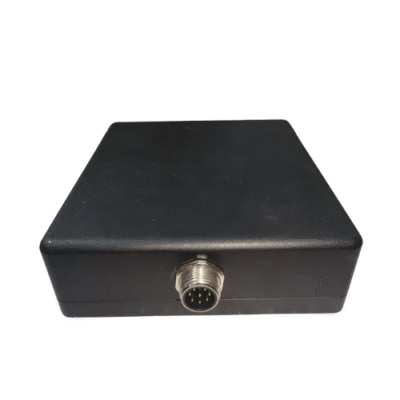

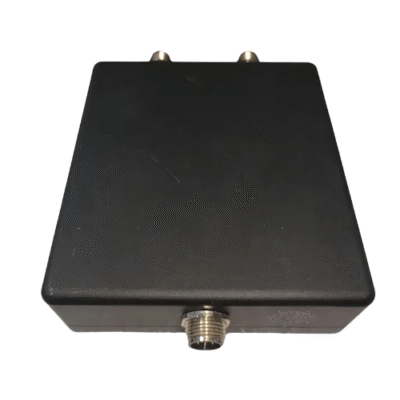

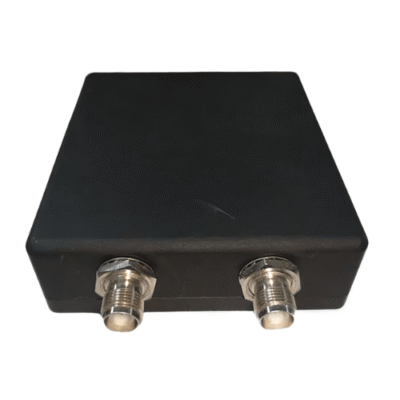

The Inventory Master uhf mini long range rfid reader is a high-performance four-channel RFID fixed reader, it supports EPC Gen2 & ISO18000-6B & 18000-6C&IP-X (18000-6D) UHF RFID protocol (ISO18000-6B&6D, which requires authorization to use); and supports multi-protocol automatic identification and mode switching. It is designed according to the EMC IEC61000-4 standard and meets industrial-grade wide voltage input mode. The power input and signal are isolated with an isolation voltage of 2KV. The wide voltage input and industrial-grade wide temperature operating temperature meet ultra-long and stable work Time; industrial-grade serial port or network port output to meet high-speed automatic real-time data transmission.
Technical Specifications
| Network | Serial |
| RF Connectors | 2 x TNC port |
| RF Power Output | – 5 to + 30dbm |
| Max Tag Read Rate | 750 tag per sec |
| Power | DC 12V3A |
| Frequency | FCC (NA, SA) 902 to 928 MHz ETSI (EU, India) 865.6 to 867.6 MHz TRAI (India) 865 to 867 MHz KCC (Korea) 917 to 920.8 MHz ACMA(Australia) 920 to 926 MHz SRRC-MII (P.R.China) 920 to 925 MHz MIC (Japan) 916.8 to 923.4 MHz Open (Customizable channel plan; 865 to 868 MHz and 902 to 928 MHz) |
| RFID Protocol Support | EPC Gen2/ISO180-6C ISO18000-6B/IPX256 EPC Gen2V2/AEI ATA |
| Operating Mode | Fixed frequency or frequency hopping |
| API Support | C, C# (.NET), Java |
| Standard Accessories | AC Adaptor and M12 Cable |
| Dust and Water Immunity | IP67 |
| Humidity | 5 % to 95 %, non-condensing |
| Operating Temp | − 4 °F to 140 °F (- 20 ℃ to + 60 ℃) |
| Storage Temp | – 40 °F to 176 °F (- 40℃ to + 80℃) |
| Dimensions (mm) | 4.15 in x 3.71 in x 1.22 in (105.4 mm x 94.2 mm x 31 mm) |
| Weight | 13.05 Oz (370 g) |
