Overview

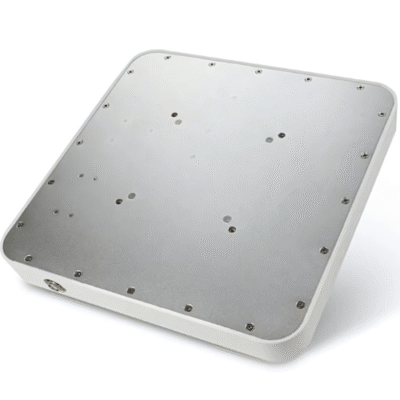

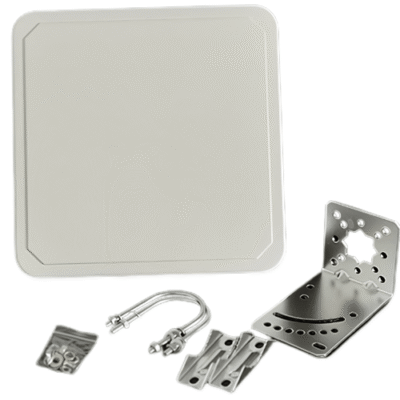

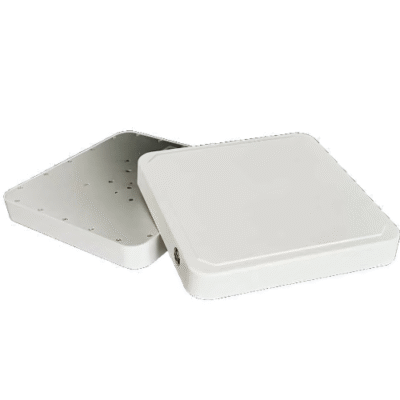

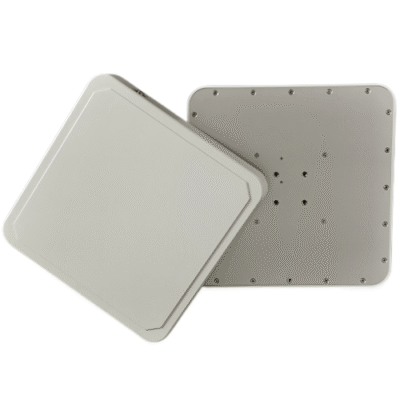

UHF RFID 860-960Mhz Antennas with low VSWR, circular polarization, easy installation, sleek design and superior performance. Additionally Panel–Rugged ultra heavy duty construction.
Features
- It is a general antenna for UHF RFID applications with high gain
- Low VSWR and broad axial ratio
- Circular polarized UHF RFID antenna can be widely used
- Side feed design
- Pleasing appearance with small size
- Sophisticated technique and easy to install
- Low profile, excellent VSWR and axial ratio parameter
- Anti UV aging and high protection class
Technical Specifications
| Frequency Range | 860 MHz to 960 MHz |
| Protocol | ISO 18000-6C |
| VSWR | ≤ 1.3 to 1 |
| Mounting Type | Fixed installation Angle adjustable |
| Description | 8.5 dBic UHF RFID Antenna |
| Polarization | Right hand |
| Production Class | IP65 |
| Connector Type | RP TNC Female |
| Gain | > 8.5 dBi |
| Axial ratio | ＜ 3 dB |
| Front-to-Back Ratio | ≥ 15 dB |
| Impedance | 50 Ω ± 1 Ω |
| Operating Temperature | – 40 °F to 185 °F (- 40 ℃ to + 85 ℃) |
| Storage Temperature | – 40 °F to 185 °F (- 40 ℃ to + 85 ℃) |
| Size | 10.16 in x 10.16 in x 1.42 in (258 mm × 258 mm × 36 mm) |
| Weight | 1.76 lb (0.8 kg) |
