Overview

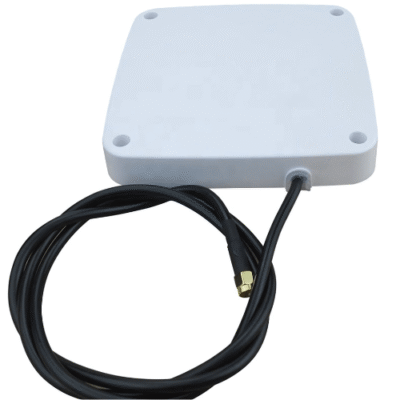

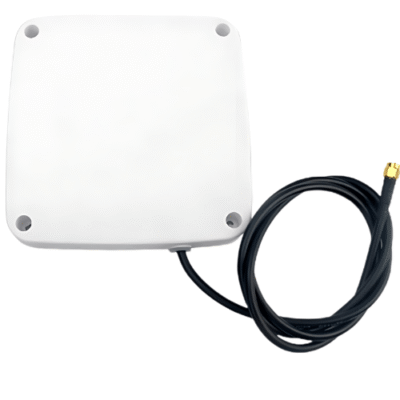

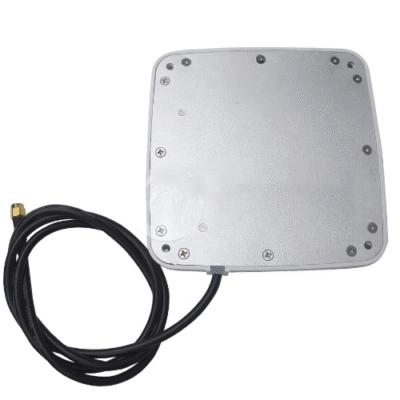

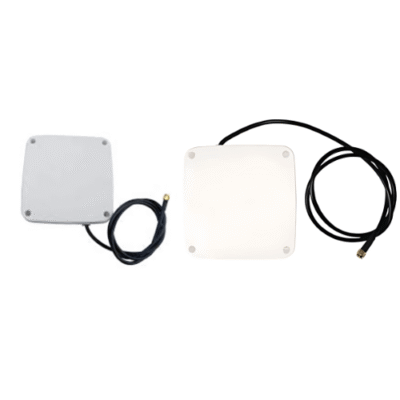

UHF RFID 860-960Mhz Antennas which are compact, rugged, IP67 rated with 6 dBi gain and perfect for indoor and outdoor use. Additionally compact rugged mini panel with cable-Compact and rugged ultra heavy duty construction.
Features
- High performance mini RFID panel antenna with only 5.2 in square
- Offers a gain specification of 6 dBi and axial ratio better than 2 dB
- Compact and rugged ultra heavy duty construction
- IP67 rated for indoor and outdoor
Technical Specifications
| Frequency | 850 MHz to 960 MH |
| VSWR | ≤ 1.5 |
| Impedance | 50 Ω |
| Gain | 6 dbi |
| Radiation type | Directional |
| Polarization | Circular |
| Axial Ratio | ≤ 2 |
| Horizontal Beamwidth | 40 Deg (± 2 Deg) |
| Vertical Beamwidth | 40 Deg (± 2 Deg) |
| Power | 50 W |
| Connector | cable with SMA J |
| Housing Material | ABS |

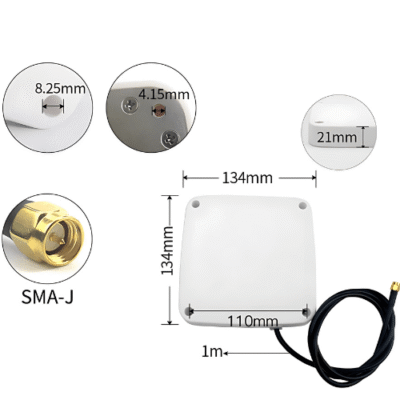

| Dimensions | 5.2 in x 5.2 in x 0.83 in (132 mm x 132 mm x 21 mm) |
| Gross Weight | 8.61 oz (244 g) |
