Overview

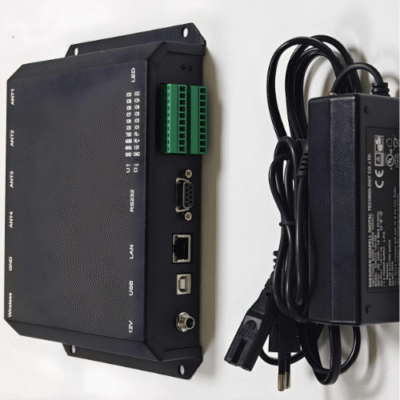

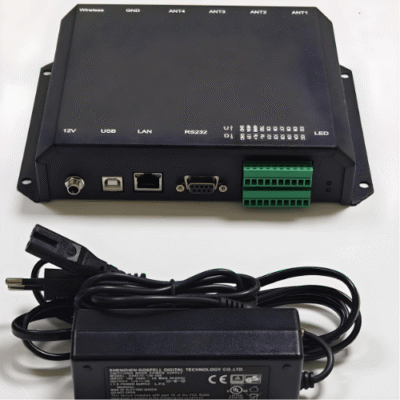

The Inventory Master UHF RFID 860-960Mhz Antennas high range reader Module is using 3993 chip, which complies with LBT function. It supports dense reader working mode (DRM). With standard 12 dBi antenna, the reading distance can reach 24 meters, maximum identifying speed can reach 400 per s. With simple power supply and interface circuit, a high performance RFID system can be established. It is suitable for logistics, apparel, medical industry and complex assets management, etc.
Features
- R2000chip UHF RFID reader module
- High performance for DIY UHF RFID reader

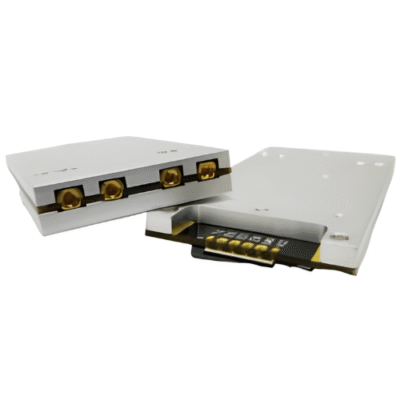

- Four antenna ports and mmcx ports
- Demo board for testing
Technical Specifications
| Fixed Current | 1.2 A |
| Frequency Range | 860 MHz to 960 MHz |
| Channel Bandwidth | ≤ 250 KHz |
| Frequency Hopping Speed | ≤ 2 s |
| Fixed Power | 30 dBm |
| RF Power | 5~30dBm |
| Stepping Interval | 1 to 2 dB |
| Starting Time | ≤ 50 ms |
| Radio-Frequency Power Rising Time | ≤ 500 μs |
| Physical Interface | 12pin ZIF interface / FCC cable |
| Max Reading Range | 78.74 ft (24 m) |
| Multi Tags | > 400 per s |
| Protocol | EPC Class1 Gen2/ISO18000-6C /ISO18000-6D |
