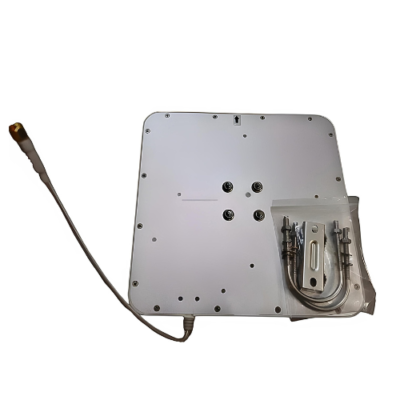

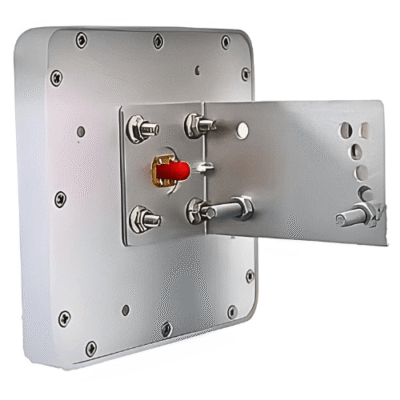

The Inventory Master UHF RFID 902-928Mhz Antennas 9dbi Circular Polarization SMA Connector Type N-50kfd Low VSWR Long Range Directional- Circular Polarization

Working frequency

865 MHz to 868 MHz (EU standard) and 902 MHz to 928 MHz (US standard)
Other frequency standards(customized)

Supported protocols

ISO18000-6B and ISO18000-6C (EPCGEN2)

Operation mode

Fixed Frequency or Software Programmable

Polarization mode

Circular polarization

Lobe width

Horizontal 60 °
Vertical 60 °

RF power

RF power 0 dBm to 30 dBm and Software Programmable

Connector

SMA or N or Customized

Gain

4 dBi and 5.5 dBi and 8 dBi and 9 dBi

Radome material

ABS

VSWR

1.4

Reading speed

Single card average reading is 64 bits and less than 15 ms

Work mode

Reading Active and reading passive and software programmable

Communication Ports

N Wiegand26 or 34 or 98 RS485RS232USB
E Wiegand26 or 34 or 98RS232TCPUSB

Input interface

1 way trigger input

Reading range

0 ft to 26.25 ft (0 m to 8 m) (High power 0 ft to 49.21 ft (0 m to 15 m))

Status indicators

Buzzer

Antenna

9 dbi circular antenna

Power supply

DC + 9 V

Operation Temperature

– 4 °F to 158 °F (- 20 ℃ to + 70 ℃)

Size

10.16 in x 10.16 in x 2.2 in (258 mm x 258 mm x 56 mm)

Weight

3.86 lb (1.75 kg)
Package 4.41 lb (2.0 kg)
