Overview

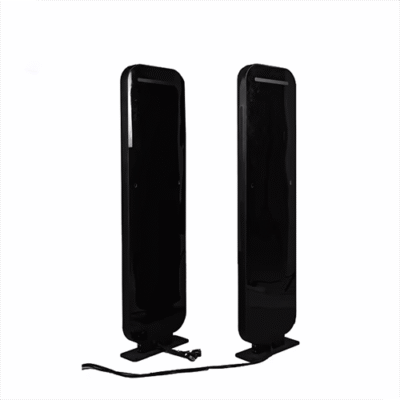

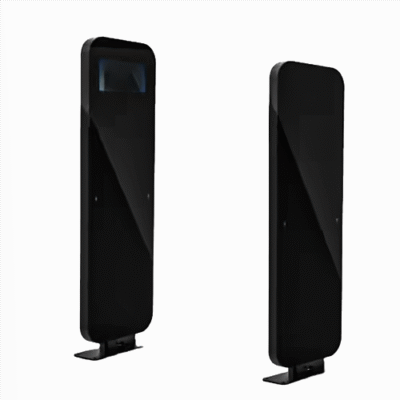

The Inventory Master uhf rfid Gate Security Portal is supports server mode to achieve multi-channel control function, internal integration of high-gain antenna group, high-speed reader and control module based on ImpinjR2000, has high-speed label reading performance and good read and write area control ability. Standard RS232 or RJ45 interfaces are available for easy connection to software platforms. Products are especially suitable for all kinds of logistics, warehousing, books, files, personnel attendance management.
Features
- Linux OS
- Multiple channel control
- Strong multi-label reading ability
- Stylish and easy to assemble
Technical Specifications
| Frequency | 902 MHz to 928 MHz Customized 865 MHz to 868 MHz |
| Protocol | ISO 18000 6 C |
| Power Supply | AC 220 V ± 10 % 47 Hz to 63 Hz |
| Power Consumption | Approx 45 W |
| Interface | RS 232(DB9) RJ45 |
| Recommended Width Per Channel | 2.62 ft to 4.92 ft (0.8 m to 1.5 m) |
| Ambient Humidity | 5 % to 95 % RH no condensation |
| Size | 53.94 in x 14.57 in x 1.97 in (1370 mm x 370 mm x 50 mm) (per pcs) |
| Operating Temperature | – 4 °F to 140 °F (- 20 ℃ to 60 ℃) |
| Storage Temperature | – 22 °F to 158 °F (- 30 ℃ to 70 ℃) |
| Weight | Main door 21.07 lbs (9.55 kg) Secondary door 19.62 lbs (8.9 kg) |
