Overview

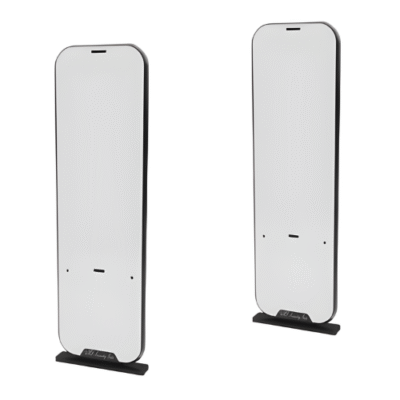

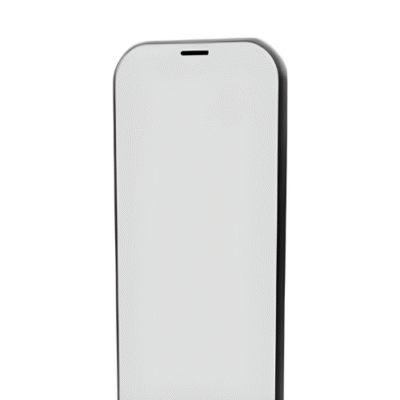

The Inventory Master UHF RFID Portal Retail security gate is given access control equipment system is a high-performance RFID tag channel machine. The system uses UHF RFID technology, and it is equipped with high-performance master and slave gate antennas, which can quickly detect multiple tags passing through channels and illegal tags with sound and light alarms. It is widely used in libraries, reading rooms, archives, smart retail, and tool management, etc.
Features
- Multiple aisle support
- High performance master and slave gate antenna
- Sound and light alarm
- Data logging and reporting
Technical Specifications
| Frequency | 860 MHz to 960 MHz |
| Protocol | EPC Global UHF Class 1 Gen 2 or ISO 18000-6C |
| Storage Capacity Of Alarm Records | ＞ 100000 records |
| Power Supply | AC 100 V to 240 V 50 Hz to 60 Hz |
| Communication Interface | Ethernet or USB or WIFI or RS232 |
| Maximum Power Consumption | 25W |
| Housing Material | Acrylic, Aluminum and Sheet Metal |
| Waterproof | Not Support |
| Aisle Width | 35.43 in to 86.62 in (90 cm to 220 cm) |
| Operating Mode | Offline Networking |
| Waterproof | Not Support |
| Display Screen | 10.1 inch LCD screen to show the flow of people in and out |
| Size | 59.5 in x 18.5 in x 3.9 in (1511.5 mm x 469 mm x 98 mm) |
| Weight | 33.07 lb (15 KG) |
