Overview

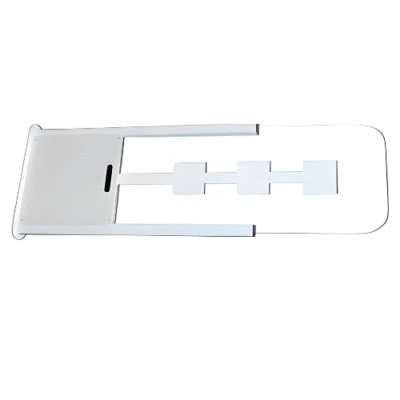

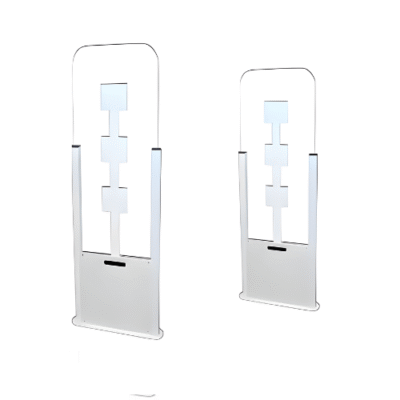

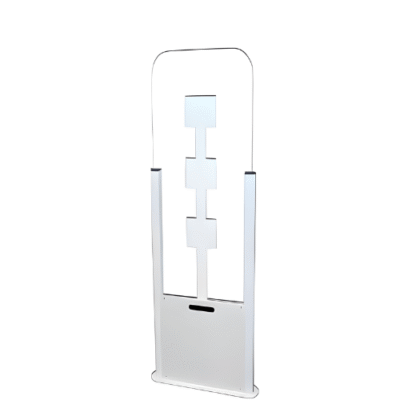

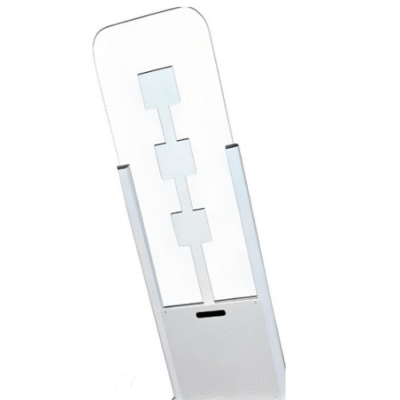

The Inventory Master UHF RFID security system portal is a high-performance device. Designed upon fully self-intellectual property, it supports fast tag anti-collision operation with high identification rate and 2-line infrared sensors for motion detection. It can be directly connected to the host, controller and other equipment. It can be widely applied in many RFID application systems such as logistics, open conference attendance system, open access control and industrial production process control.
Features
- Wide frequency range
- Low power consumption
- Humidity tolerance
Technical Specifications
| Frequency | 840 MHz to 960 MHz |
| Protocol | ISO 18000-6C |
| Communication Interface | RS232 and TCP or IP |
| Power Supply | 220 V 50 Hz |
| Current | 160 mA |
| Alarm | Light and buzzer |
| Moving Direction Judgment | 2 infrared sensors |
| Relative Humidity | 25 % to 95 % |
| Storage Temperature | -4 °F to 158 °F (- 20 ℃ to 70 ℃) |
| Operating Temperature | 14 °F to 140 °F (- 10 ℃ to 60 ℃) |
| Size | 60.24 in x 22.83 in x 1.89 in (1530 mm x 580 mm x 48 mm) |
| Weight | 61.73 lbs (28 kg) |
