Overview

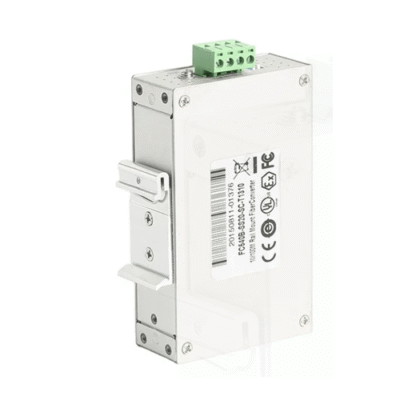

The Inventory Master unmanaged industrial media convertor gives fanless heat dissipation circuit design, wide range of working environment temperature -22 °F to 167 °F (–30 °C to +75 °C), high protection level IP40, it provides excellent industrial quality with high or low temperature resistance and lightning protection and enhances the reliability and safety of industrial networks. The device can be widely applied to various broadband data transmission fields such as intelligent transportation, telecommunications, security, financial securities, customs, shipping, power, water conservancy and oil fields.
Technical Specification
| Network | Wired LAN, Ethernet |
| Interface | 1 x 100 Base-FX, 2 x 10 or 100 Base-TX |
| Transmission mode | Full or Half Duplex |
| Power interface | Phoenix terminal, dual power supply |
| LED indicators | PWR, OPT |
| DIP Switch | 1 LFP-LFP or Remote PD restart 2 LGY-LEGACY 3 VLAN- Port Isolation 4 BSR-Storm Control Configuration |
| L2 Switching | Switching capacity 1 Gbps Packet forwarding rate 0.744 Mbps MAC address table 2 K Forwarding delay 5 us Buffer 768 K Flow control support Jumbo frame Support 2k Storm control Support Port-Isolation Support Remote PD Reset Support |
| Input voltage | DC 12 V to 58 V |
| Power consumption | < 5 W |
| IP level | IP 40 |
| EMI | CLASS A |
| Free fall | 19.69 in (0.5 m) |
| Operating temperature | -22 °F to 167 °F (-30 ℃ to 75 ℃) |
| Storage temperature | -40 °F to 167 °F (-40 ℃ to 75 ℃) |
| Relative humidity | 5 % to 95 % (non-condensing) |
| MTBF | 100,000 hrs |
| Housing | Metal Material |
| Product size | 3.58 in x 4.64 in x 1.22 in (91 mm X 118 mm X 31 mm) |
| Weight | 0.79 lb (360 g) |
