Overview

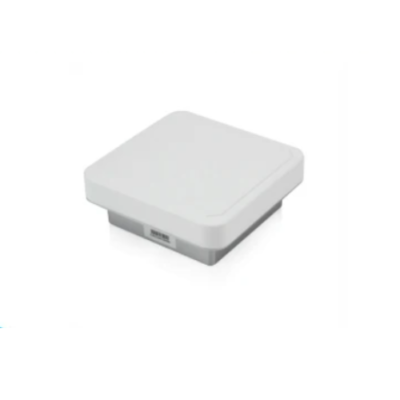

The Inventory Master USB Wiegand UHF RFID Fixed Reader for Warehouse is a high-end mid-long-range integrated UHF RFID reader products, its design carries the company’s research and development of ultra-high frequency M2100 read-write module and 6dBi circular polarization antenna, the main control chip uses a new generation of high-performance processor, with multi-device communication, watchdog, heartbeat packet and real-time monitoring equipment status information. Function, and integrated with RS 232. USB and 100 Mega Ethernet communication interface, its read distance can reach more than 3 meters, for the same product read distance, the most stable performance of ultra-high frequency reader products. The Reader uses aluminum + PC shell design, with waterproof, dust-proof, strong anti-interference ability and lightning protection circuit design. Supporting ISO18000-6C protocol, it has the characteristics of compactness, portability, multi-interface, long recognition distance, high speed, high accuracy, strong anti-interference ability, good protection performance and easy installation and use.Top of Form.
Technical Specifications
| Working Frequency | 840 MHz To 960 MHz |
| Tag Protocol | EPC Global UHF Class 1 Gen 2 Or ISO 18000-6C |
| Working Voltage | DC +12 V |
| Output Power | Software Adjustable, Step Interval 1.0 dB, Maximum + 30 dBm |
| Output Power Flatness | ± 0.2 dBm |
| Receiving Sensitivity | -60 dBm |
| RF Port Standing Wave | ≤ 1.5 |
| Reading Distance | ≥ 22.96 ft (7 m) (Relate To Tags Type, Transmitted Power And Application Environment) |
| Multi-Tags Reading | ≥ 200 Tags Pers |
| Interface Communication Rate | 115200 bps |
| Working Temperature Detection | Support |
| Intensive Read/Write Mode DRM | Support |
| Antenna Connection Protection | Support |
| RSSI | Support |
| Antenna Type | 6 dBi Linear Polarization Antenna |
| Communication Port | RS 485, RS 232(DB-9) RJ 45 328.08 ft (100 m) Ethernet port |
| IP Grade | IP 64 |
| Buzzer | Yes |
| Enclosure | ABS Industrial Plastic Case |
| Working Humidity | ≤ 9 5 % + 77 °F (+ 25 °C) |
| Working Temperature | -13 °F To + 140 °F (- 25 °C To + 65 °C) |
| Storage Temperature | -40 °F To + 176 °F (- 40 °C To + 80 °C) |
| Dimension | 4.72 in x 4.72 in x 1.97 in (120 mm x 120 mm x 50 mm) |
