The Inventory Master Waterproof UHF Android Handheld RFID Reader – Frequency – Worldwide 840 MHz To 960 MHz Or EU 865 MHz To 868 MHz Or US 902 MHz To 928 MHz

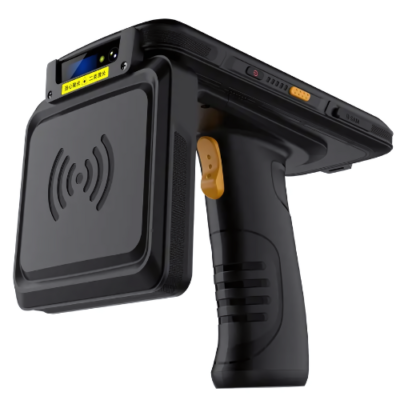

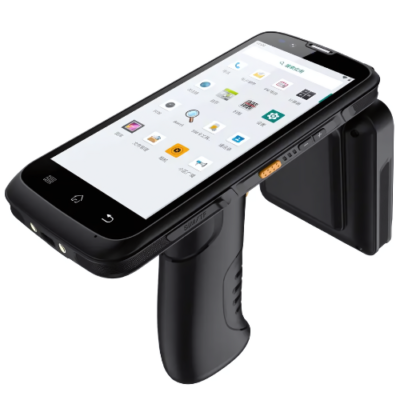

The Inventory Master Waterproof UHF Android Handheld RFID Reader is an Android rugged mobile computer.

SKU: TIMUHF-932 Category:

Overview

The Inventory Master Waterproof UHF Android Handheld RFID Reader is an Android rugged mobile computer. It features powerful processor, 10000 mAh battery and superb UHF RFID capability. That it can read tags in bulk from long housing, fleet management.



Technical Specifications

FrequencyWorldwide 840 MHz to 960 MHz, EU 865 MHz to 868 MHz, US 902 MHz to 928 MHz
ProtocolISO/IEC 18000-6C and 6B, EPC Class1 Gen2
MaterialABS Waterproof
AntennaBuilt-in 8 dBi Circular polarization antenna
Read And Write RangeRead 3.2 ft to 19.6 ft (1 m to 6 m) adjustable, tag and environment dependent
Working ModeRead & write supported
KeywordRFID Handheld reader
ColorBlack (bottom shell black, front shell black)
Reading Distance3.2 ft to 19.6 ft (1 m to 6 m)
Display Size5.0 in (12.7 cm)
Display Resolution1280 x 720
Touch PanelMulti-touch panel, Corning grade 3 glass toughened screen
Front Camera5.0 MP
Rear Camera13 MP Autofocus with flash
SpeakerBuilt-in 8 Ω or 0.8 W waterproof horn x 1
MicrophoneBuilt-in Sensitivity: -42 dB, Output impedance 2.2 kΩ
Battery TypeRemovable polymer lithium-ion battery
Battery Capacity3.7 V or 10000 mAh
Battery LifeAbout 8 hrs (standby time > 300 h)
Antenna ParameterSpiral antenna (4 dBi)
Card Reading DistanceAccording to different labels, the effective distance is 26.2 ft to 82.0 ft (8 m to 25 m)
Optical Resolution5 mil (8.04 km)
Scanning Speed50 times per s
Acquisition SpeedSingle frame image acquisition time ≤ 0.25 s
Fingerprint ModuleCapacitive USB press module
Image Resolution508 dpi
Image Size256 pi X 360 pi
CameraFront camera 5.0MP (optional), Rear camera 13MP Autofocus with flash
QR Code (Optional)Honeywell 6603, Zebra SE4710, CM60; Optical resolution: 5 mil; Scanning speed: 50 times per second; Supported code types: PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse, Maxicode, QR Code, MicroQR, QR Inverse, Aztec, Aztec Inverse, Han Xin, Han Xin Inverse
RFID FunctionLow frequency: Support 125 k and 134.2 k, effective recognition distance 1.18 in to 1.97 in (30 mm to 50 mm);
High frequency: 13.56 MHz, support 14443A/B; 15693 agreement, effective recognition distance 3-5 cm;
UHF: CHN frequency: 920 MHz to 925 MHz, US frequency: 902 MHz to 928 MHz, EU frequency: 865 MHz to 868 MHz; Protocol standard: EPC C1 GEN2/ISO18000-6C; Antenna parameter: Spiral antenna (4 dBi); Card reading distance: According to different labels, the effective distance is 26.24 ft to 82 ft (8 m to 25 m)
Dimensions7.0 in x 3.2 in x 0.6 in (178 mm × 83 mm x 17 mm)
Weight20.4 oz (580 g)
