Overview

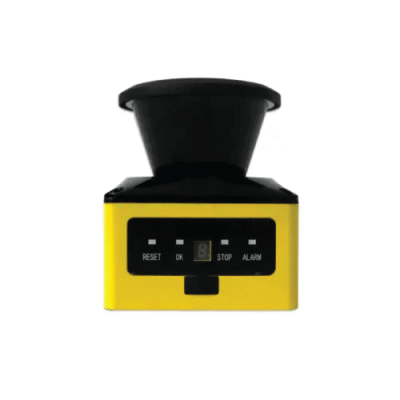

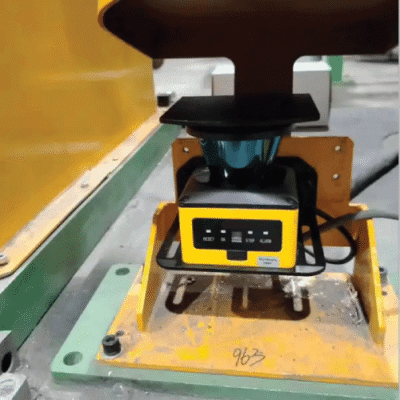

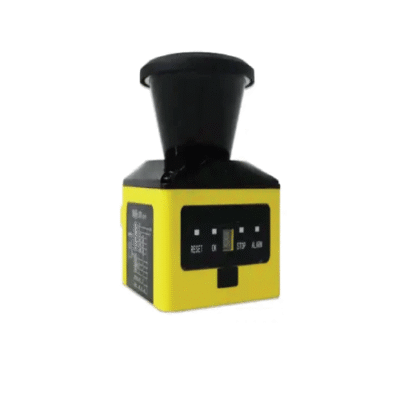

The Inventory Master industrial LiDAR sensor can achieve the two-dimensional zone detection and profile scanning with a range of 270° and a radius of 3 m, Featuring small size, high flexibility, good capability and reliability and high cost performance, it is the ideal choice for the obstacle avoidance and navigation of mobile robot.
Features
- Currently smallest laser radar with funcion safety certification in the world
- Protection zones of scanner consists of protective zones and warning zones
- Maximum radius of protective zones is 3 m 1.8% reflectivity
- Detection zones can be defined as any complex, irregular shapes
- Meets the safety requirements of IEC 61496 Type3 and ISO 13849 PLd
- It is Class 1 laser product which is safe to human eyes
Technical Specifications
| Safety Level | Type 3 (IEC 61496), Pld (ISO 13849) |
| Detection Light Source | Wave length 905 nm |
| Light Inference resistance | 15000 lux |
| Maximum Detection Radius | 3 m (1.8% reflectivity) |
| scanning angle range | 270 degree |
| Detection Error | ±1.54 in (±4 cm) |
| Power Supply | DC 9 V to DC 24 V |
| Output | PNP |
| Area Group Number | 16 |
| Power Consumption | <5 W |
| Humidity | 35% RH to 85% RH (Operating), 35% RH to 95% RH (Storage) |
| Temperature | 14 °F to 131 °F (-10 °C to 55 °C) (Operating), -40 °F to 158 °F (-40 °C to 70 °C) (Storage) |
| Dimension | 31.49 in x 31.49 in x 37.40 in (80 mm x 80 mm x 95 mm) |
