Overview

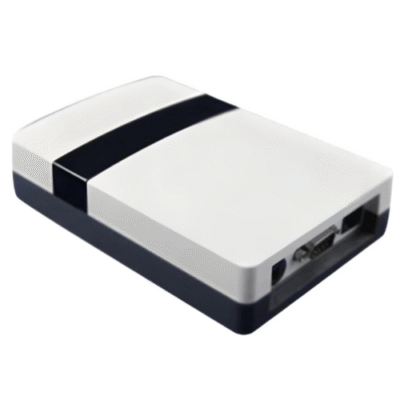

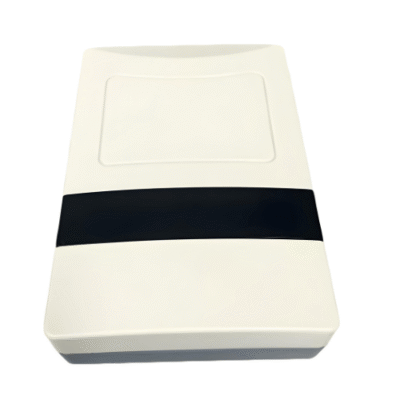

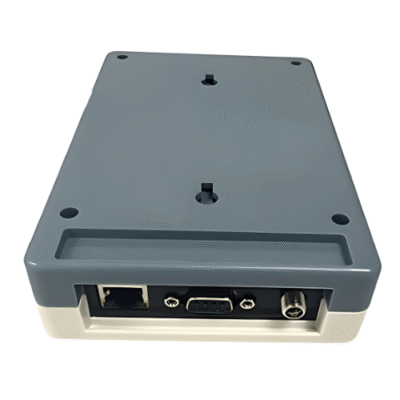

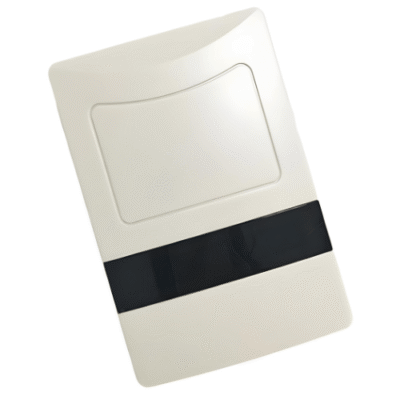

The Inventory Master UHF Desktop RFID Reader & Writer is compatibility with few protocols, easy portable, high speed of read or write, can using in every RFID system. It also includes logistics and warehouse management, production line management, product security detection and other applications like club management, library, consumption management, attendance management, etc.
Features
- Ensure the correct information between reader and system’s tag
- It can get the ID number of tag, and get the data which in the specify area
- Can write data in specify tag’ storage area
- Can connect with the device which has W26 and W34 interface
- Communicate with controller or PC, that can get the data
- Has USB keyboard input port, get the data whatever the cursor where is
Technical Specifications
| Performance Parameters | |
| Working Frequency | 902 MHz to 928 MHz or 865 MHz to 868 MHz |
| Protocol | ISO18000-6C (EPC C1 GEN2) |
| Antenna Gain | 3 dBi circular polarization |
| Communication Port | Left USB to serial port or Right USB to keyboard input |
| Software & SDK | DEMO and C#, VC, VB, Java, DELPH etc. |
| Encryption | Can be directly encrypted, copy prevention |
| Reading Range | Stable reading 23.6 in to 31.4 in (60 cm to 80 cm) |
| Writing Range | Stable writing 0 in to 3.9 in (0 cm to 10 cm) |
| Physical Parameters | |
| Power | USB |
| Output Power | 0 dBm to 18 ±1 dBm |
| Shell Material | ABS |
| Working Temperature | -4 °F to 167 °F (-20 ºC to +75 ºC) |
| Storage Temperature | -40 °F to 185 °F (-40 ºC to +85 ºC) |
| Item Size | 4.7 in x 3.07 in x 1.1 in (120 mm x 78 mm x 28 mm) |
| Package Size | 7.08 in x 4.7 in x 1.96 in (180 mm x 120 mm x 50 mm) |
| Net Weight | 7.05 oz (200 g) |
