Overview

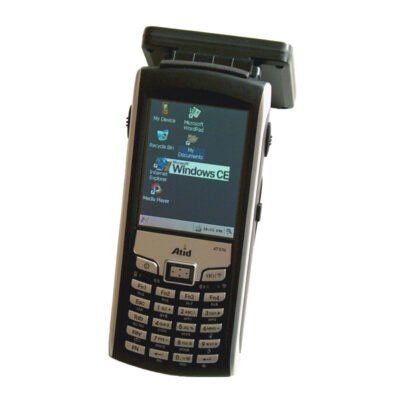

This UHF Gen 2 RFID reader/writer is used for field service as well as in warehousing, distribution, on shop floors and in retail POS inventory control. It supports multi-detection and offers a maximum read distance of 3m and writing distances of up to 1.5 m. The multi-protocol unit runs under the latest Windows Mobile operating system. It is available for transponders compliant with ISO18000-6B, EPC Class 1 Gen 1, EPC UHF Gen 2 and ISO18000-6C standards.
Key Features
- Light-weight and compact in size
- Multiple protocols
- Packaged within high impact plastic housing
- Waterproof and dust-proof
Technical Specifications
| Display | 240 × 320 pixel QVGA with backlight 256 colors TFT-LCD touch screen |
| Power requirements | 12 V DC, 1.5 A 4400 mAh Li-ion battery |
| Communications Interface | USB, IrDA1.1, RS232, TTL |
| Baud rate | 19,200 bps N, 8, 1 |
| Frequency | 902 MHz to 928 MHz |
| Power | 4 W |
| Read distance | 0 to 3 m |
| Write distance | 0 to 1.5 m |
| Technical certificates | RoHS, CE, FCC, ISO/IEC 18000-6B, EPC Class 1, EPC Gen2 |
| Dimensions | 175 mm (L) × 76 mm (W) × 33 mm (H) including reader module |
| Weight | 0.64 kg including reader module |
| Housing | High impact plastic |
| Protection rating | IP 55 |
| Operating temperature | -20 °C to 50 °C |
| Storage temperature | -30 °C to 70 °C |
| Humidity | 0% to 95% relative |
| Multi-detection | Yes |
