Features

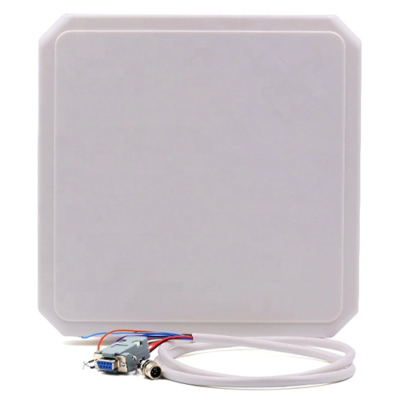

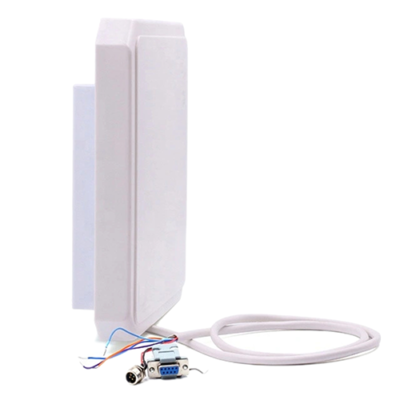

- This device is a UHF RFID integrated reader
- It is designed based on independent intellectual property rights and appearance patent
- It features integrated RF reader antenna, small in size, light in weight, IP65, industrial control joint easy to deploy
- Tag buffer size up to 800pcs/96 bits EPC
- It performs excellent UHF R/W function, adapt to global working frequency
- It supply with multi-language SDK (C#, C++, Delphi, VB, Java) , easy for secondary development integration
- Support Windows, Linux, Android Demo software
Technical Specifications
| Protocol | EPC Class 1 Gen 2(ISO18000-6c) |
| Communication Interface | Standard: RS232, RJ45, Wiegand; Optional: 4 G/Wi-Fi/ |
| Power Supply | 220 V AC Input, +12 V to 2 A Adaptor DC Output |
| Sdk | C#, C++, Delphi, VB, Java |
| Read Distance | 5 m to 10m |
| Operating Frequency | 865MHz to 928MHz |
| Antenna | Built-in 8dBi Circular Polarization Antenna |
| Size | 13.78 in ×12.60 in ×12.20 in (35 cm X 32 cm X 31 cm) |
| Gpio(For Your Optional) | 1 Relay Output, 1 Trigger Input |
| Application Software | API Development Kit and Application Routine Based |
