Features
- Working Frequency America standard (902 to 928MHz)
- European standard (865 MHz 868 MHz)
- Customize other frequency
- Support Protocol ISO18000 6B
- Frequency Power 30 dBm be adjusted by software
- Reading Distance 15 Meter
Technical Specifications
| Protocol | ISO 18000 6C |

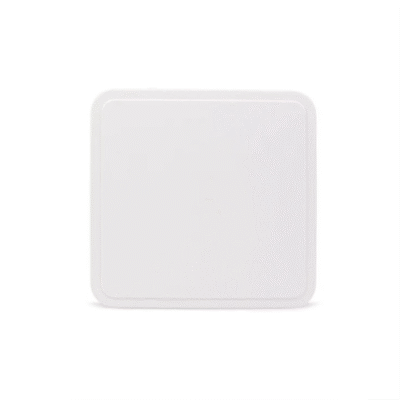

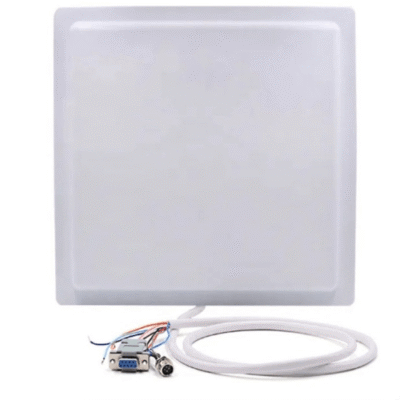

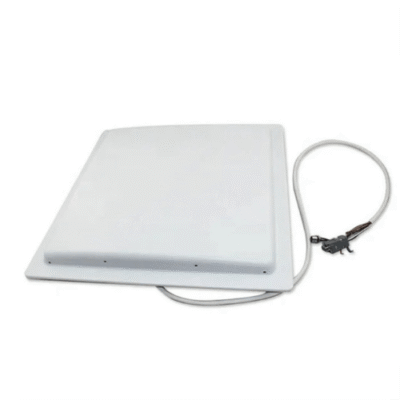

| Product Name | Long Range UHF Antenna |
| Material | ABS |
| Product Size | 17.72 in x 17.72 in x 2.95 in (450 mm x 450 mm x 75 mm) |
| Power Supply Voltage | 12 VDC |
| Output Interface | Standard Wiegand26 |
| Card Type | UHF Card |
| Operating Frequency | 902 MHZ 928 MHz or custom other frequency |
| Reading Range | 3.28 ft 49.21 ft (1 to 15 meters) |
| Waterproof | IP65 Degree |
| Gain | 12 dBi |
| Interface | Wiegand RS 232 RS 85 |
| Reading Distance | 49.21 ft (15 meters) |
| Single Gross Weight | 19.84 lbs (9.000 kg) |
