Overview

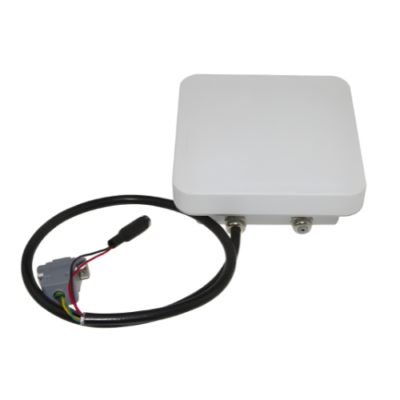

The Inventory Master RFID UHF Long Range Parking Reader design carries the company’s ultra-high frequency research and development. Read-write module and 7 dBi circular polarization antenna, the main control chip uses a new generation of high-performance processor, with multi-device communication, monitoring, heartbeat packet and real-time monitoring equipment status information. Function and integrated with RS232. Relay communication interface and 100 Mega Ethernet, its reading distance can reach more than 19.68 ft (6 m), for the same product reading distance, the most stable performance of ultra-high frequency reader products.
Technical Specifications
| Voltage | DC +12 V |
| Protocol | EPC global UHF Class 1 Gen 2 / ISO 18000-6C |
| Frequency | EU: 865 MHz to 868 MHz US: 902 MHz to 928 MHz Whole: 860 MHz to 960 MHz |
| Support Area | China 1, China 2 US, Canada and other regions following U.S. FCC Europe and other regions following ETSI EN 302 208 with & without LBT Japan, Korea, Malaysia, Taiwan |
| Output | 0 dBm to 33 dBm (Adjustable) |
| Output Power Flatness | ±0.2 dBm |
| Receiving Sensitivity | -60 dBm |
| RF Port Standing Wave | ≤ 1.5 |
| Read Distance | 3.28 ft to 19.68 ft (1 m to 6 m) (related to tag type, transmit power and application environment) |
| Multi Label Read | ≥ 200 tags per s |
| Interface Communication Rate | 115200 bps |
| Working Temperature Detection | Support |
| Dense Reader Mode DRM | Support |
| Antenna Connection Protection | Support |
| Antenna Type | 6 dBi circularly polarized antenna |
| Communication Interface | RS232, Relay |
| Buzzer | Yes |
| Protection Grade | IP65 |
| Outline Dimension | 7.48 in x 7.48 in x 1.18 in (190 mm x 190 mm x 30 mm) |
