Overview

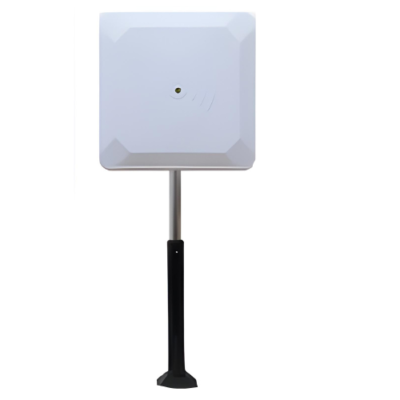

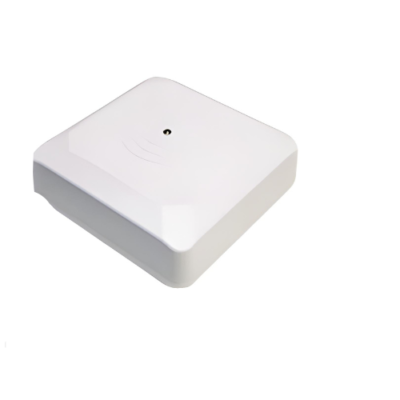

The Inventory Master Card Reader UHF RFID Reader with Wiegand Management System is a High-Performance UHF integrated reader for long range operation. Compact Reader with integrated 8dBi circular polarized UHF Far Field antenna, based on proprietary efficient digital signal processing algorithm, the reader is capable of up to 19.6 ft (6 m) Read Range and 9.8 ft (3 m) Write Range. The reader operates in frequency range of 902 MHz to 928 MHz design to read ISO18000‐6C and ISO18000‐6B protocol ID Tag. The reader can be widely applied in many RFID application systems such as logistics, access control, and anti-counterfeit and industrial production process control system.
Technical Specifications
| Frequency | International (920 MHz to 925MHz) USA (902 MHz to 928 MHz) Others (Customized Tag) |
| Protocol | ISO18000‐6C (EPCGEN2) |
| Type | UHF Sticker |
| Card Type | UHF Sticker |
| Interface | RS232, RS485, Wiegand Interface |
| Reading Distance | > 32.8 ft (10 m) |
| Application | Parking, Hospital, Library, Company, Bank, Store, Pedestrian Lane |
| Place Of Application | Parking, Entrance gate, Residential complex |
| Other Reading Distances | 22.9 ft (7 m), 49.2 ft (15 m), 72.1 ft (22 m) |
| Management System | Optional |
| Specification | 72.1 ft (22 m) |
| Card | Card and sticker optional |
| Frequency Hopping Mode | Fixed Frequency Band and FHSS Software Programmable |
| Antenna | 8 dBi circular polarize antenna (Integrated) |
| Output Power | 0 dBm to 18 dBm (Adjustable) |
| Read or Write Range | Max Read Range: 19.6 ft (6 m), Max Write Range: 9.8 ft (3 m) Distance depends on Reader & Antenna output Power |
| Operating Mode | Master‐Slave Mode (Online Mode) Time Scheduled Modes Trigger Mode |
| Power | 12 V |
| Communication Port | RS‐232 Wiegand Interface: Wiegand 26 & Wiegand 34 Supported RS‐485 10 M or 100 M Ethernet, GPRS. WIFI (for Customized Model only) |
| Trigger | 1 x Trigger Level Input |
| General Purpose | 2 x GPIO |
| Power Supply | AC 110 V to 220 V or DC+ 12 V |

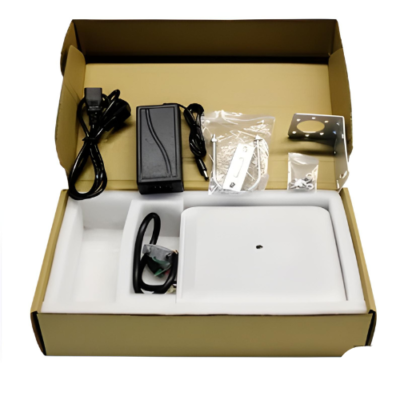

| Cables | Power Cable RS232 Serial Cable |
| Brackets | Pole Mount Adapter |
| Software Pack | API Software Development Kits complete with VB, C# Sample Program |
| Operation Temperature | -4 °F to 140 °F (-20 °C to +60 °C) |
| Storage Temperature | -49 °F to 185 °F (-45 °C to +85 °C) |
| Reader Size | 8.9 in X 8.9 in X 2.3 in (227 mm X 227 mm X 60 mm) |
| Net weight | 3.9 lb (1.8 kg) |
