Overview

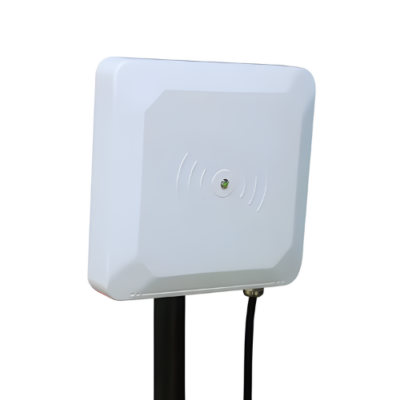

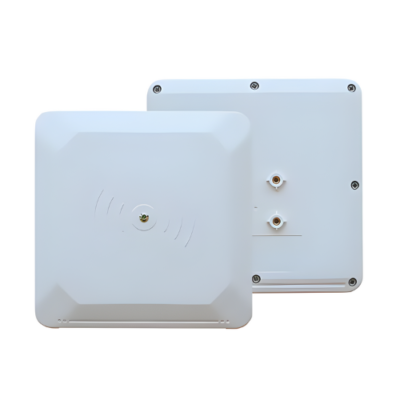

The Inventory Master antenna parking vehicle access control system RFID UHF card fix reader for gate is a UHF RFID-integrated reader. It is designed based on independent intellectual property rights and appearance patents. It features an integrated RF reader antenna, is small, light in weight, IP65, an industrial control joint, and is easy to deploy. Tag buffer size up to 800 pcs to 96 bits EPC. It performs excellent UHF R and W functions and adapts to global working frequency. It is supplied with multi-language SDK (C#, C++, Delphi, VB, Java, Python), making it easy for secondary development integration. Support ARDUINO, ARM, Linux, Windows, Android, and Raspbian development platforms.
Technical Specifications
| Frequency | 865 MHz to 868 MHz or 902 MHz to 928 MHz |
| Protocol | EPC C1 GEN2 or ISO18000-6C |
| Radio Frequency | WAC independent R&D technology |
| Built-In Antenna | 8 dBi circular polarization |
| Power | 30 dBm (adjustable by 1 dBm step with WAC demo software) |
| Read And Write Range | Read range 0 ft to 16.40 ft (0 m to 5 m), Write range 1 9.69 in (>500 mm) (test tag: AZ9662Inlay) |
| Group Read Rate | 1 pc to 10 pcs EPC tag |
| Working Areas | US, Canada and other regions following U.S. FCC Part 15 regulation, Europe and other regions following ETSI EN 302 208 regulations, Mainland China, Japan, Korea, Malaysia, Taiwan |
| Communication Interface | Standard: RS232, RS485, RJ45, Wiegand Optional: RJ45 (TCP or IP, WIFI), 4G |
| Serial Rate | 9600 bps to 115200 bps |
| RJ45 Rate | 10 Mbps |
| GPIO (For Your Optional) | 1 relay output, 1 trigger input |
| Reading Indicator | Buzzer, LED |
| Power Consumption | 1 W |
| Power Supply | 220 V AC input, +9 V to 25 V per 2 A adaptor DC output |
| Application Software | API development kit and application routine based on Windows |
| Sdk | C#, C++, Delphi, VB, Java, Python |
| Lighting Protection | DC ground |
| Protection Level | IEC IP65 |
| Shell Material | ABS + PC |
| Antenna Front Housing Color | Gray |
| Antenna Rear Housing | Die-casting aluminium alloy |
| Installation Method | Holding pole |
| Operating Temperature | -13 °F to 158 °F (-25 ℃ to +70 ℃) |
| Storage Temperature | -22 °F to 176 °F (-30 ℃ to +80 ℃) |
| Humidity | 5 % to 95 % RH, non-condensing |
| Dimension | 7.48 in x 7.48 in x 1.97 in (190 mm x 190 mm x 50 mm) |
| Weight | 3.31 lb (1.5 kg) |
