Overview

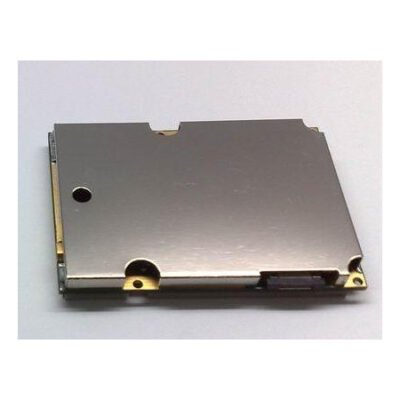

This high performance UHF RFID reader is able to read/write RFID tags compliant with ISO18000-6B and EPC Class 1 Gen 2 ISO18000-6C protocols. It operates over a frequency range of 902 MHz to 928 MHz and provides fast tag read/write operation with high identification rate. It supports EPC, User and TID data read/write operations. This reader is widely applied in many RFID application systems such as logistics, access control, attendance systems, anti-counterfeit and industrial production process control systems.
Key Features
- Working frequency: 902 MHz to 928 MHz
- Support various EPC length tag (16, 32, 48, 64, 80 or 96 bits)
- Supports ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tags
- RF output power up to 30dbm (adjustable)
- Low power dissipation with single 5 V DC power supply
- Provide SDK and demo software to facilitate application development
Applications
- Logistics
- Anti-counterfeiting
- Attendance Systems
- Access Control
Technical Specifications
| Frequency | 902 MHz to 928 MHz |
| Protocol support | EPC C1 Gen 2 ISO18000-6C /ISO18000-6B |
| RF Output | Up to 30 dbm (adjustable) |
| Interface | RS232 (TTL level) |
| Read Distance | > 1000 mm |
| Write Distance | > 100 mm |
| Power Supply | 5 V DC |
| Current | 900 mA |
| Dimensions | 62 mm × 45 mm × 9 mm |
| Operating Temp | -10 °C to 60 °C |
| Storage Temp | -25 °C to 80 °C |
