Overview

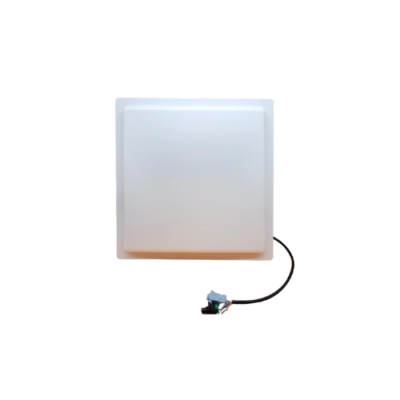

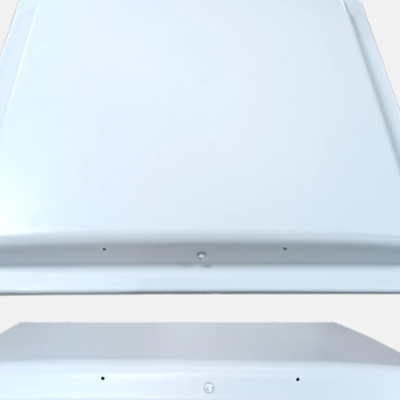

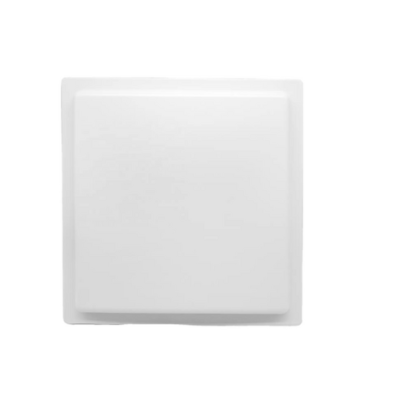

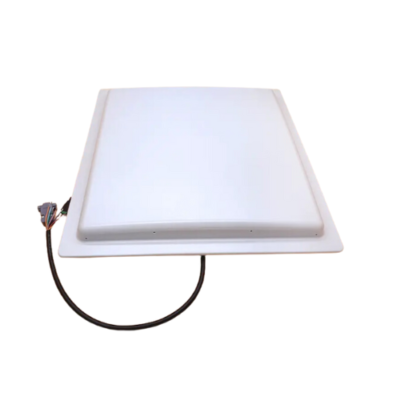

A RFID system with advanced UHF reader, supporting EPC CLASS 1 GEN 2 & ISO18000-6C protocols. Boasting a 12 dBi gain antenna and a versatile Wiegand.
Features
- Modularized product series
- Supports PoE power supply
- UHF reading TID or EPC combinations
- Desktop card issuer supports keyboard mode
- Full product series support
- Independent intellectual property rights
Technical Specifications
| Frequency | 865 MHz to 868 MHz or 902 MHz to 928 MHz |
| Protocol | EPC CLASS 1 GEN 2 or SO18000-6C (GB) |
| Gain | 12 dBi |
| Communication Interface | RS232 or 485, Wiegand, USB |
| Reading Distance | 0 ft to 65.6 ft (0 m to 20 m) |
| Material | ABS + PCB |
| Color | Milk white |
| Power Supply | DC 12 V |
| Interfaces | Standard-WG26 or 34, RS232 or 485, USB |
| Serial Rate | 9600 bps to 115200 bps |
| Work Principle | FHSS or Fixed Frequency |
| Work Mode | Timing or Active or Trigger |
| Antenna | Linear Polarization |
| Output Power | 0 dBm to 32 dBm |
| Reading Distance | 0 ft to 82.0 ft (0 m to 25 m) (Depend on tag or environment) |
| Reading Speed | 40 times per s |
| Power Supply | + 9 V to + 25 V, >3 A |
| Power Dissipation | < 4 W per h |
| Work Tip | Buzzer |
| Beam Width (H or V) | H65° V63° or H40º V40º |
| VSWR | ≤ 1.3 |
| Impedance | 50 Ω |
| F or B Ratio | ≥ 23 |
| Power Supply | + 9 V to 25 V or 2 A adaptor DC output |
| Lightning Protection | DC Ground |
| Shell Material | ABS + PC + Aluminum |
| Randome Front Color | Grey |
| Randome Rear Housing | Die-casting aluminium alloy |
| Installation Method | Holding pole |
| Holding Pole Diameter | Φ 1.5 in X 3.1 in (40 mm to 80 mm) |
| Protection Level | IEC IP65 |
| Humidity | 20 % RH to 95 % RH (non-condensing) |
| Working Temperature Range | 14 °F to 131 °F (-10 ℃ to +55 ℃) |
| Storage Temperature Range | -4 °F to 167 °F (-20 ℃ to +75 ℃) |
| Size | 17 .5 in X 17.5 in X 2.7 in (445 mm × 445 mm X 70 mm) |
| Weight | 10.1 lbs (4.6 kg) |
