Overview

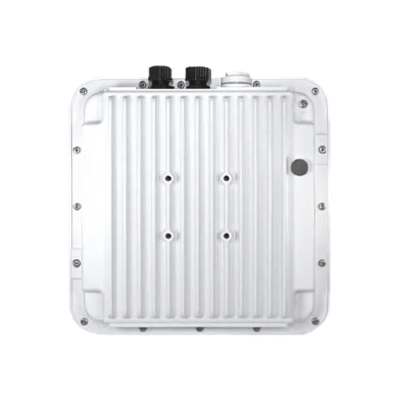

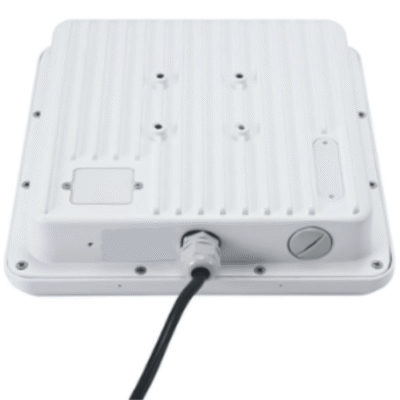

The Inventory Master RFID UHF integrated high-end and medium-long reader, its design carries the company’s ultra-high frequency research and development. Read-write module and 9 dBi circular polarization antenna, the main control chip uses a new generation of high-performance processor, with multi-device communication, monitoring, heartbeat packet and real-time monitoring equipment status information. function and integrated with RS232. Relay communication interface and 100 Mega Ethernet, its reading distance can reach more than 6 meters, for the same product reading distance, the most stable performance of ultra-high frequency reader products.
Technical Specifications
| Voltage | DC + 12 V |
| Protocol | EPC global UHF Class 1 Gen 2 / ISO 18000-6C |
| Frequency | EU:865 MHz to 868 MHz; US:902 MHz to 928MHz, whole: 860 MHz to 960 MHz |
| Support Area | China 1，China 2 US, Canada and other regions following U.S. FCC Europe and other regions following ETSI EN 302 208 with & without LBT Japan, Korea, Malaysia, Taiwan |
| Output | 0 DBM to 30 DBM (Adjustable) |
| Output Power Flatness | ± 0.2 dBm |
| Receiving Sensitivity | – 60 dBm |
| RF Port Standing Wave | ≤ 1.5 |
| Read Distance | 3.2 ft to 19.6 ft (1 m to 6 m) (related to tag type, transmit power and application environment) |
| Multi Label Read | ≥ 200 tags per sec |
| Interface Communication Rate | 115200 bps |
| Protection Grade | IP65 |
| Working Temperature Detection | Support |
| Dense Reader Mode DRM | Support |
| Antenna Connection Protection | Support |
| Antenna Type | 6 dBi circularly polarized antenna |
| Communication Interface | RS232, Relay |
| Buzzer | Yes |
| Outline Dimension | 7.48 in x 7.48 in x 1.18 in (190 mm x 190 mm x 30 mm) |
