Overview

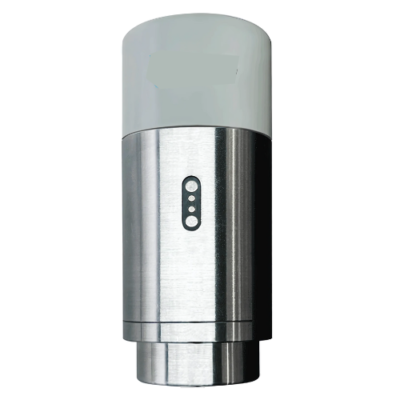

The Inventory Master’s Ultra-low power LoRaWAN pressure sensor with OTA is a ready-to-use LoRa or LoRaWAN sensor for indoor (industrial) applications. Modular design allows for the replacement of sensor probes to adjust different projects. It has excellent low power consumption characteristics and LoRa provides Long-distance transmission capability. It comes with a built-in 1100 mAh rechargeable battery and magnetic charging interface. The stainless-steel shell and high-strength plastic provide an IP66 protection level, allowing it to perform stably and excellently in complex industrial environments.
Features
- Ultra-low power consumption
- Magnetic charging interface
- Custom LoRa or LoRaWAN compatibility
- OTA firmware upgrade
Technical Specifications
| LoRa Node Chip | SX1262 |
| LoRaWAN | LoRaWAN 1.0.2 Rev. B, Class A or C, OTAA or ABP |
| Max. TX Power | +20 dBm ± 2 dBm |
| Receiving Sensitivity | -136 dBm at SF12 BW = 125 KHz |
| Battery | 1100 mAh, 18350 rechargeable Li-On battery |
| Charging Interface | Magnetic charging interface |
| Device Parameters Change Method | Web page via Wi-Fi, or Bluetooth via APP |
| Barometic Pressure Accuracy (full range typical) | ± 1 hPa |
| Temperature Resolution | ± 32.54 °F (0.3 °C) |
| Operating Humidity | 0 % RH to 90 % RH, no-condensing |
| Operating Temperature | -22 °F to 149 °F (- 30 °C to 65 °C) |
| Size | 3.39 in x 1.42 in (86 mm x 36 mm) |
