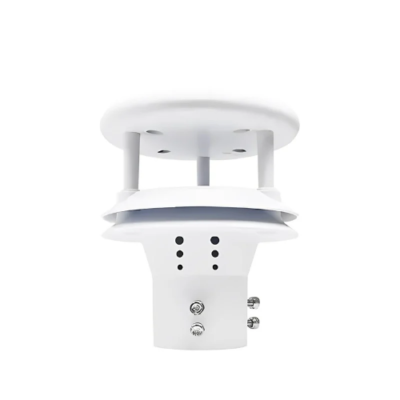

Features
- Ultrasonic probe hidden in the top cover to avoid the interference of rain and snow accumulation and avoid the obstruction of natural wind
- The principle is to transmit a continuous frequency conversion ultrasonic signal, and detect the wind speed and direction by measuring the relative phase.
- PM2.5, PM10, CO, SO2, NO2, O3, temperature, humidity, wind speed, wind direction, atmospheric pressure, rainfall twelve elements integrated
- Adopt advanced sensor technology, real-time measurement, no starting wind speed
- Strong anti-interference ability, with watchdog circuit and automatic reset function to ensure stable operation of the system
- High integration, no moving parts, zero wear
- Maintenance-free, no on-site calibration
- Adopting ASA engineering plastics for outdoor applications, does not change color all year round
- The standard configuration of product design output signal is RS485 communication interface (MODBUS protocol); optional 232, USB, Ethernet interface, support real-time data reading
- Optional wireless transmission module, the minimum transmission interval is 1 minute
- The probe is a snap-in design, which solves the problem of inaccurate looseness during transportation and installation
Technical Specifications
| Monitoring Parameter | PM2.5, PM10, TSP, CO, NO₂, SO₂, O₂, temperature, relative humidity, wind speed, wind direction, atmospheric pressure, piezoelectric rainfall, optical rainfall, illuminance, total radiation, noise, and carbon dioxide |
| Transmission | 485 |
| Protocol | Modbus |
| Output Voltage | 12V, 24V |
| Standard Wiring Length | 1 m (3.28 ft) |
| Accuracy and Resolution | |
| PM2.5, PM10, TSP | 0-1000 µg/m³, 1 µg/m³ resolution, ±10% accuracy (<500 micrograms) |
| CO | 0-20 ppm, 0.01 ppm resolution, ±5% F.S accuracy |
| NO₂, SO₂, O₂ | 0-1 ppm, 0.001 ppm resolution, ±5% F.S accuracy |
| Relative Humidity | 0-100% RH, 0.01% RH resolution, ±3% RH accuracy |
| Wind Speed | 0-60 m/s, 0.01 m/s resolution, ±0.1 m/s accuracy |
| Wind Direction | 0-360°, 1° resolution, ±2° accuracy |
| Atmospheric Pressure | 30-110 kPa, 0.01 kPa resolution, ±0.25% accuracy |
| Piezoelectric Rainfall | 0-4 mm/min, 0.01 mm resolution, ≤±4% accuracy |
| Optical Rainfall | 0-4 mm/min, 0.1 mm resolution, ≤±4% accuracy |
| Illuminance | 0-20 W/LUX, 1 lux resolution, ≤±3% accuracy |
| Total Radiation | 0-1800 W/m², 1 W/m² resolution, ≤±3% accuracy |
| Noise | 30-120 dB, 0.1 dB resolution, ±1.5 dB accuracy |
| Carbon Dioxide | 400-5000 ppm, 1 ppm resolution, ±(50 ppm + 5% of read value) accuracy |
| Temperature | -40°F to 140°F (-40°C to 60°C), 32.01°F (0.01°C) resolution, ±0.3°C (25°C) accuracy |
