Overview

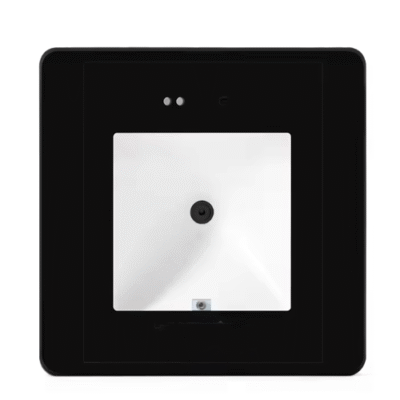

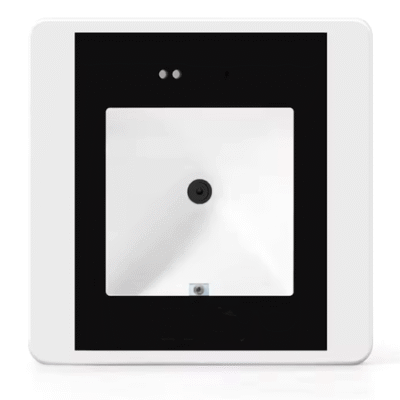

LONVILL NFC Reader: Seamlessly integrate NFC, compact, versatile, ideal for ID, payment, and management.
Technical Specifications
| Frequency | 125khz or 13.56 mhz |
| Protocol | ISO14443A ISO18000 |
| Card Reader Type | EM card or Mifare card |
| Interface | Wiegand or USB or RS232 or TCP-IP orRS485 |
| Weight | 5.29 oz (150 g) |
| Operating System | Windows (XP or 7 or 8 or10), Linux |
| Reading Distance (QR Code) | 0 in to 1.654 in (0 cm to 20 cm) |
| Operating Temperature | -4°F to 158°F (-20 ℃ to 70 ℃) |
| Size | 3.38 in × 3.38 in × 1.65 in (8.6 cm × 8.6 cm × 4.2 cm) |
| Feature | OEM+Free SDK |
| Application | Identification or Payment or Management |
| Project | Parameter |
| Card Reader Type | EM card or mifare card |
| Barcode Type | QR, one or two dimensional code |
| Communication Method | Wiegand or USB or RS232 or TCP-IP or RS485 |
| Decoding Mode | Image decoding |
| Reading Direction (Bar Code) | Angle 45° with the lens as center point |
| Scan code Characteristics | Automation induction, buzzer prompt |
| Operating Voltage | 8 V to 12 V |
| Working Current | 800 mA |
| Reading Distance (Card) | 1.181 in to 2.362 in (3 cm to 6 cm) |
| Reading Speed | Less than 200 ms |
| Material Quality | PC and tempered glass (scan code window) |
| Working Humidity | 10% to 90% |
| Indicator Light | Red work light, greed feedback light, emerald green network light |
