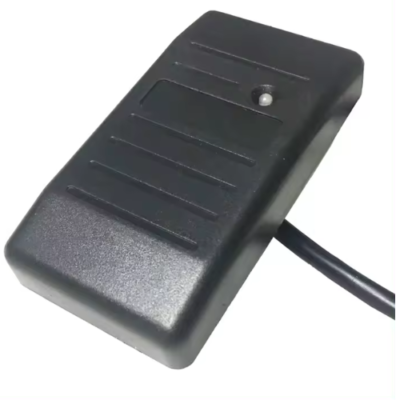

1-Wire RFID reader for 125KHz and 13.56MHz cards, with ISO 14443-A, fast baud rate, and up to 8 cm read distance. Supports 9V or POE power.

SKU: TIMLF-340 Category:

Features

  • Supports card : 125Khz/3.56Mhz optional
  • Support 1 wire communication
  • A buzzer and a LED indicator light



Technical Specifications

Frequency125KHz or 13.56MHz
StandardISO/IEC 14443-A
Supporting CardMifare S50/S70
Interface1 Wire
Power SupplyExternal 9V or POE power supply
Read Distance0 in to 3.14in (0cm to 8cm)
Baud Rate9600bit/s to 115200bit/s (Configurable , default 9600)
Operating Temperature14 °F to 122 °F (-10℃ to 50℃)
Dimension3.14in x 1.69in x 0.51in (80mm x 43mm x 13mm)
ProtocolISO14443A
Power Supply9V to 12V
Reading Range0in to 1.9in (0cm to 5cm)
