Features

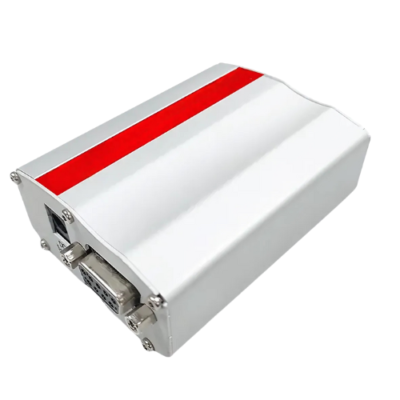

- External wireless module for data transmission
- Supports TCP/IP M2M communication for industrial applications
- Compatible with 4G LTE FDD/TDD and GSM networks
- Frequency support for CAT-M, CAT-NB, and GSM bands
- Data transmission speeds up to 589 Kbps (downlink) and 1119 Kbps (uplink)
- Compact dimensions for easy integration in devices
- VoLTE support for Cat-M1 with Realtek ALC 5616 codec
- RS-232 interface for connectivity
- Low weight of 3.1 grams for efficient handling
Technical Specifications
| Style | External |
| Type | Wireless |
| Transmission Rate | 1024 Kbps |
| Interface Type | RS-232 |
| Module | SIMCOM SIM7070-G |
| Support | TCP/IP M2M |
| Function | Data Transmission |
| Frequency | 4G LTE FDD TDD |
| Application | Industrial Field/M2M |
| Working Quincy | CAT-M: B1/B2/B3/B4/B5/B8/B12/B13/B14/, B18/B19/B20/B25/B26/B27/B28/B66/B85, CAT-NB: BB1/B2/B3/B4/B5/B8/B12/B13/B18/, B19/B20/B25/B26/B28/B66/B71/B85 GSM:850/900/1800/1900MHz |
| Data | Cat-NB(Kbps) Cat-M(Kbps), Max.589(DL)/Max.1119(UL), Max.127(DL)/Max.158.5(UL) EGPRS(Kbps), Max.296(DL)/Max.236.8(UL) |
| Voice | VoLTE (For Cat. M1 Only. Support Realtek, ALC, 5616 Codec by Default Firmware) |
| Weight | 0.68 lbs (0,31 kg) |
| Dimensions | 0.885 in x 1.043 in x 0.091 in. (2.25 cm × 2.65 cm × 0.23 cm) |
