Overview

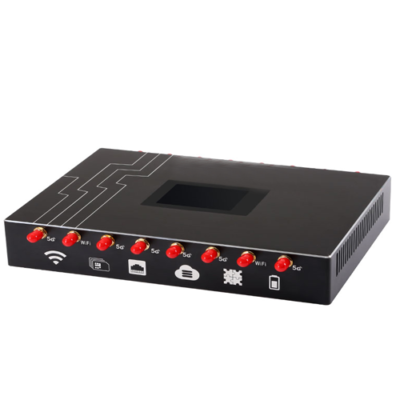

The Inventory Master X5 5G Aggregation Router with WiFi 6 & 1800 Mbps Speed support 5 G, WiFi6, wired network and other access methods. They have an open architecture design, providing fast and flexible customization; they can realize local real-time data analysis and intelligent processing; they adopt industrial-grade standard design, wide temperature, wide voltage , dustproof, anti-strong electromagnetic interference, equipped with multiple hardware protection, with external watchdog circuit, can run stably even in harsh environments, can adapt to different industry scenarios, use public wireless networks to provide users with wireless data transfer function. Mainly in areas with harsher environments, they provide various network support for everyone. Now they have been widely used in the M2M industry in the IoT industry chain, such as webcasting, outdoor mobile wifi, smart grid, smart transportation, finance, supply chain automation, industrial automation, smart buildings, fire protection, public safety, environmental protection, meteorology, Digital medical treatment, telemetry, agriculture, forestry, water affairs, coal mine, petrochemical and other fields.
Technical Specifications
| CPU | Qualcomm ARM-A53 quad-core 1.80 Ghz frequency |
| Memory | Onboard SMD DDR4 1 GB |
| EMMC | 4 GB (default) can be customized 16 GB to 128 GB |
| Nand Flash | 2 Gb |
| Nor FLASH | 128 Mb |
| WIFI | 802.11.ax (Wi-Fi 6), the highest rate can reach 1800 Mbps, support 2.4 G or 5.8 G dual band |
| Network support | Supports 3 G or 4 G or 5 G networks of China Unicom, China Telecom and China Mobile (customizable network version for overseas users) |
| System time | Time synchronization using NTP technology |
| WIFI performance | |
| Protocol standard | IEEE 802.11b/g/n/ac/wifi6 ax |
| Antenna support | 5.8 GHz: 2 x 2 or 80 Mhz 2.4 GHz: 2 x 2 or 40 Mhz |
| WIFI frequency band | 2.412 GHz to 2.47 GHz and 5.15 GHz to 5.85 GHz dual frequency synchronization |
| WIFI rate | The onboard Wi-Fi 2.4 GHz can reach up to 600 Mbps, and the TCP data can reach up to 400 Mbps. The onboard Wi-Fi 5.8 GHz can pass up to 1200 Mbps, and the TCP data can reach up to 1000 Mbps. |
| Output Power | Single channel dual 2.4 G WIFI, maximum output power 20 dBm Single-channel dual 5.8 G WIFI, the maximum output power is about 23 dBm |
| Receive sensitivity | Under the condition of @ 802.11 AX, 2.4 G connection gain –78 dB Under the condition of @80.11AX, 5.8 G receive gain –77 dB |
| 5 G Module | |
| Band support | Support 5 G or 4 G or 3 G three Netcom module, or support seven-mode three Netcom (4 G module, can replace the global 5 G module) |
| Theoretical bandwidth | NR SA: 1.9 Gbps (DL) or 750 Mbps (UL) NR ENDC: 2 Gbps (DL) or 340 Mbps (UL) LTE: 500 Mbps (DL) or 150 Mbps (UL) WCDMA: 42 Mbps (DL) or 11 Mbps The above data are only theoretical values, and the actual network speed is limited by the local network environment |
| Number of 5 G modules | 4 built-in 5 G modules (4 G modules are optional) |
