| Product Status | Stock |

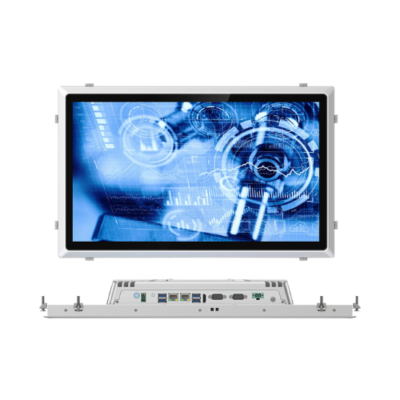

| Type | Panel PC |
| Chassis Color | Gray (color can be freely customized) |
| Chassis Material | Aluminum alloy integrated die-casting shell |
| Processor Options | On-board Intel Celeron J6412 / N5095 / i7-6500U / i5-7200U / i5-1235U / i5-1335U |
| Chipset | Intel Embedded SOC (6th to 13th Gen options) |
| Memory | 1 × DDR4 SODIMM slot, up to 32 GB |
| BIOS | AMI EFI BIOS |
| Display Chip | Integrated Intel UHD Graphics |
| Display Interface | 1 × HD, 1 × LVDS (supports synchronous/asynchronous dual display) |
| Storage | 1 × M.2 2280 slot (SATA protocol), 1 × 2.5″ hard disk bay |
| Expansion Slot | 1 × Mini PCIe (optional support for Wi-Fi / Bluetooth / 3G / 4G with SIM card holder) |
| I/O Ports | 1 × HD interface, 2 × serial ports (optional RS232/485, optional 6 serial ports), 1 × switch button, 1 × 2-pin Phoenix power terminal, 1 × 2-in-1 audio, 4 × USB 3.0, 2 × Intel Gigabit LAN, 1 × 4-pin remote switch |
| Other Functions | Secure encryption, power-on, timed boot, network wake-up, PXE boot, watchdog (0–255 levels) |
| Expandable Functionality | Standard: 2 LAN ports, 2 serial ports, 4 USB 3.0; GPIO optional |
| Screen Size | 12.1 in TFT-LCD |
| Screen Brightness | 350 cd/m² |
| Screen Ratio | 4:3 (square) |
| Resolution | 1024 × 768 |
| Touch Screen | Industrial-grade multi-point capacitive, touch life > 50 million times |
| Audio | 28 Ω, 2 W horn |
| Power Supply | DC 9–36 V wide voltage input, supports reverse polarity protection |
| Installation Method | Embedded / Wall Mounted / Desktop Stand |
| Working Humidity | 5% – 95% non-condensing |
| Additional Working Humidity | 10% – 95% @ 104 °F (40 °C) without condensation |
| Operating Temperature | 14 °F to 122 °F (–10 °C to 50 °C, mechanical HDD) / –4 °F to 140 °F (–20 °C to 60 °C, SSD, with surface airflow) |
| Storage Temperature | –40 °F to 176 °F (–40 °C to 80 °C) |
| Product Dimensions | 12.23 in × 9.79 in × 2.30 in (310.6 mm × 248.6 mm × 58.5 mm) |
| Flush Mounting Dimensions | 11.77 in × 9.33 in (299 mm × 237 mm) |
| Weight | 5.73 lb (2.6 kg) |
