Overview

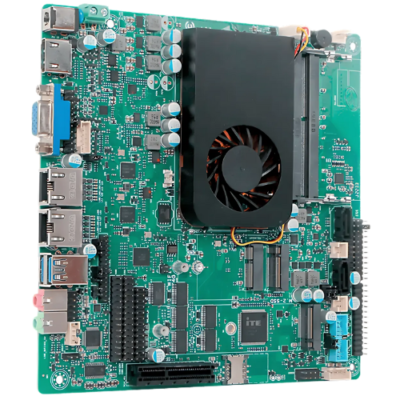

The Inventory Master’s Compact Mini-ITX Motherboard with Intel 11th Gen, 64GB RAM – The Inventory Master offers an extensive range of ports, including Wi-Fi, SATA, VGA, USB 2.0, DisplayPort, Ethernet, and M.2, ensuring seamless connectivity and versatile expansion options for any user. This motherboard supports onboard Intel 11th generation Tiger Lake-U series processors, providing exceptional processing power and efficiency for demanding applications. With a maximum RAM capacity of 64GB and dual DDR4 slots, this motherboard allows for effortless multitasking and smooth performance, ideal for heavy users. This Mini-ITX motherboard is perfect for users looking to build a compact PC or upgrade their existing system without sacrificing performance.
Technical Specifications
| Processor System | Onboard intel 11th gen tiger lake-U series processors EFI BIOS |
| Memory | 2 DDR4 2666MHz SO-DIMM dual channel, maximum support 64GB |
| Display | 1 VGA, 2048×1536; 1 H-D2.0, 4096×2304, 60Hz 24-bit dual-channel LVDS, 1920×1200; eDP, 4096×2304@60Hz (either LVDS or eDP) |
| Storage | 2 SATA3.0, 2 2Pin SATA power supplies, 1 4Pin SATA power supply 1 M.2 2280 interface, the default PCIe3.0_2X protocol (select one of SATA2 and SATA protocol) Onboard SSD, optional 32GB/64GB/128GB (choose one with SATA1, no default) Remarks: default M.2 NVMe protocol + 2 SATA3.0 |
| I/O Interface | 1 DC JACK, 1 VGA, 1 H-D, 2 LAN, 2 USB3.1, 1 Line out, 1 MIC |
| Extended Interface/Function | TPM2.0, optional 2 Intel I225 2.5G network cards (single and dual network optional) 1 PCIe_4X interface, PCIe3.0_X4 protocol 1 Key-E, M.2 2230 WIFI module 1 Key-B, M.2 4G/5G module, SIM card 4 RS232, 2 RS232/485 2 groups of 4 USB2.0, 1 group of 2 USB3.0 LPT pin, 2x13Pin, pitch 2.54mm Built-in VGA pin, 2x5Pin, pitch 2.54 Aluminum fan radiator (supports automatic and manual fan speed adjustment) 1 PS/2 pin interface, 2x4Pin, pitch 2.54 mm 8-bit GPIO, 2x5Pin, pitch 2.54mm, routine provided 0-255 seconds watchdog, provide watchdog routine |
| Power Supply | DC12V to 19 V, 90 W |
| Operating System | 6th CPU supports windows7 windows10 LINUX 7th CPU supports windows10 LINUX |
| Working Temperature | -4°F to 140°F (-20 ℃ to +60 ℃) |
| Storage Temperature | -40°F to 185°F (-40 ℃ to +85 ℃) |
| Working Humidity | 0% to 90% |
| Storage Humidity | 0% to 90% |
| Product Size | 6.69 in x 6.69 in (170 mm 170 mm) |
| Weight | 8.04 oz (228 g) |
