Overview

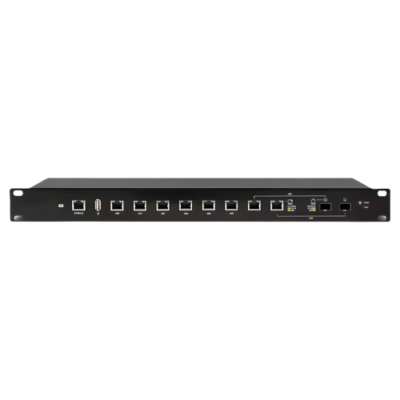

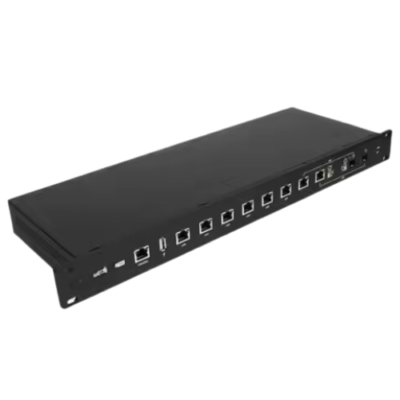

The Inventory Master Edge Router combines carrier-class reliability with enterprise-level features in a compact and affordable unit. Available in a rack-mountable form factor with eight functional ports, this device is faster and capable of routing up to 2 million and more packets per second. Powered by a proprietary and intuitive graphical interface, The Inventory Master Edge Router can easily be configured for routing, security, and management features required to efficiently run the network. For advanced network professionals, an integrated CLI is available for quick and direct access using familiar commands.
Technical Specifications
| Network | Wired LAN |
| Router Type | Enterprise router |
| Port Structure | Modularization |
| WAN Area Network Interface | 6 |
| LAN Area Network Interface | 2 |
| Other Ports | 1 x USB 2.0, 1 x RJ45 Console Interface |
| Package Forwarding Rate | 64-byte packet forwarding rate: 2.4 Mpps, 512 or more packet forwarding rate: 8 Gbps (line rate) |
| Firewall | Built-in firewall |
| QoS Supports | Backing |
| VPN Support | Backing |
| Network Security | ACL, Firewall, RADIUS Authentication, PPPoE, DHCP, DNS, Static Routing, OSPF or RIP Dynamic Routing, ARP, 802.1q VLAN, Logs, etc. |
| Network Management | Web-UI, CLI (console, SSH, Telnet), SNMP, NetFlow, LLDP, NTP, UBNT discovery protocol, etc. |
| Processor | Dual 1 GHz, MIPS64 |
| Product Memory | DRAM Memory: 2GB, FLASH Memory: 4GB |
| Supply Voltage | AC 100V to 240V |
| Supply Power | 60W, 24V, 2.5A |
| Operating Humidity | 10%RH to 90%RH non-condensation |
| Operating Temperature | 14°F to 113°F (-10°C to 45°C) |
| Size | 19.06 x 6.46 x 1.73 in (484 x 164 x 44 mm) |
