Technical Specifications

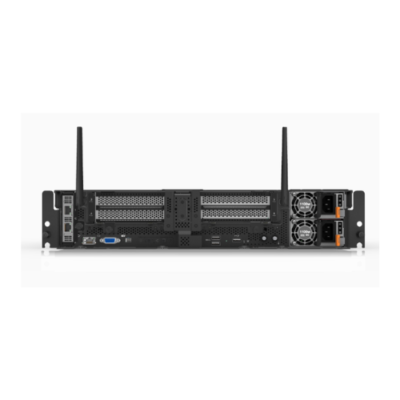

| Form Factor | 2U rack server: 11.8 in (300 mm) depth with 4 × FHHL adapters or 14.2 in (360 mm) depth with 4 × FHFL adapters |
| Processor | 1 × 3rd Gen Xeon Platinum, up to 36 cores, up to 225 W TDPor Intel Silver 4314, 2.3 GHz |
| Memory | 10 × DDR4 slots, max 1 TB using 8 × 128 GB 3DS RDIMMs; supports up to 2 × Optane Persistent Memory 200 Series modulesor 32 GB DDR4 |
| Storage / Drive Bays | Up to 6 × 2.5 in 7 mm drives; up to 6 × NVMe drives; 2 × M.2 boot drives (RAID 1)or 2 × 480 GB SSD |
| Expansion Slots | Up to 4 × PCIe 4.0 slots, 1 × OCP 3.0 slot |
| GPU Support | Up to 4 × single-width GPUs or 2 × double-width GPUs |
| Network Interface | LOM adapter in OCP 3.0 slot; PCIe adapters |
| Ports | Front: 1 × Power Button, 1 × system locator LED, health LED, 1 × VGA, 2 × USB 3.1, 1 × Serial (optional), 1 × RJ-45 1 Gb for dedicated management; Optional Wi-Fi (management) |
| HBA / RAID Support | Software RAID standard; optional hardware RAID with/without cache; SAS HBAs |
| Power Supply | Dual redundant AC (up to 1100 W Platinum) or dual redundant DC -48V 1100 W |
| Dimensions (H × W × D) | 2U rack; Depth options: 11.8 in (300 mm) or 14.2 in (360 mm) |
| Weight | Not provided |
