Overview

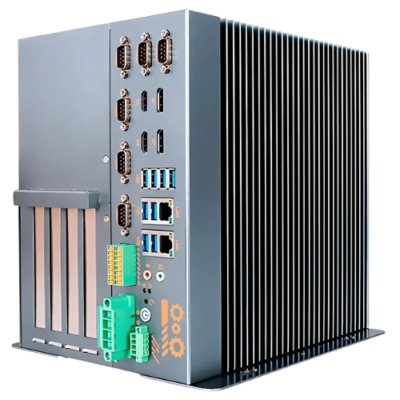

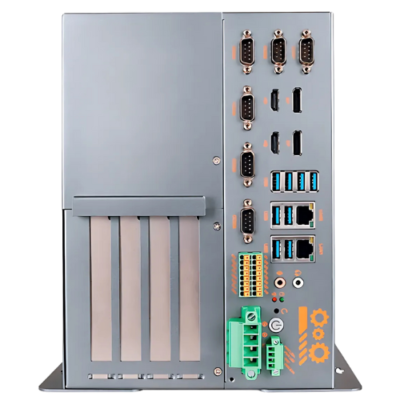

The Inventory Master’s Industrial Embedded Edge PC with Intel 12th-14th Gen with 12th/13th Gen LGA 1700 H670/Q670 X86 Embedded Edge Computing Case is designed to deliver robust performance in industrial settings, supporting Intel 12th/13th/14th series processors for efficient and reliable operation. This mini PC features 2 x DDR5 SO-DIMM slots, allowing for a maximum total of 64GB of memory, making it an ideal solution for demanding industrial applications that require high memory capacity.
The device offers 2 x Intel I226-V LAN ports, M.2 2280 B-key and E-key slots, 6x COM ports, 2x HDMI/DP ports, and 8x USB 3.0 ports, providing users with a wide range of connectivity options for various industrial applications. With a compact size of 262x264x228 mm, this mini PC is designed for space-constrained industrial environments, and its DC 9-36V power supply ensures reliable operation in various power conditions. The device comes with multiple plug types, including US, JP, CN, AU, UK, and EU, making it suitable for use in various regions worldwide, and is also compatible with Windows 10/11 and Linux operating systems.
Technical Specifications
| Material | Aluminum profile, iron grey |
| Processor System | Intel 12th/13th/14th generation -S series processors, LGA1700, TDP 35W H670/Q670 UEFI BIOS |
| Memory | 2 x DDR5 SO-DIMM, total maximum 64GB |
| Storage | 1 x M.2 2280(PCIe5.0 x2) 1 x 2.5inch SATA3.0 |
| Display | 2 x DP interface 2 x H-DMI |
| I/O Interface | 4Pin 5.08 phoenix terminal power interface, 6 x DB9 COM, 2 x H-DMI&DP, 8 x USB3.0, 2 x LAN (Intel i226-V), 16-bit GPIO Power button, reset button, remote switch, line out, mic in |
| Expansion Interface/Function | External TPM2.0 is optional, not available by default 4 x expansion slots: 1x PCIe X16 & 1xPCIe X4 & 2xPCI 1 x E-key (PCIe+USB2.0 protocol, WIFI/BT) 1 x B-key (USB2.0+USB3.0 protocol, 4G/5G), Micro SIM card 2 x Built-in USB2.0 interface |
| Power Supply | DC 9 V to 36 V, 150 W or above |
| Operating System | Win10, win11, linux |
| Working Temperature | -4°F to 140°F (-20 ℃ to +60 ℃) |
| Storage Temperature | -40°F to 185°F (-40 ℃ to +85 ℃) |
| Working Humidity | 5% to 90% |
| Storage Humidity | 5% to 90% |
| Product Size | 10.31 in x 10.39 in x 8.98 in (262 mm x 264 mm x 228 mm) |
| Weight | About 13.23 lbs (6 Kg) |
