Overview
The Inventory Master’s Quad core mini PC with dual display, 2.5G LAN features a powerful quad-core processor, providing efficient performance for demanding tasks and applications. This ensures seamless operation and smooth functionality. Equipped with one HDMI port and one DisplayPort, this mini PC allows users to connect two displays simultaneously, enhancing productivity and multitasking capabilities. With four Intel I225-V 2.5G LAN ports, this device offers high-speed networking capabilities, ideal for applications that require fast data transfer rates. Quad core mini PC with dual display, 2.5G LAN supports a range of storage options, including M.2 NVMe SSDs, 2.5-inch HDD/SSD, and capacities up to 1TB, catering to various user needs. his mini PC supports both Windows 10 and Linux operating systems, providing users with flexibility and adaptability to suit their specific requirements, including pfSense Firewall Appliance.
Features
- The N1141 Secure your network with a compact, fanless & silent firewall.
- In-tel Ce-leron J6412 (Quad core, 1.5 MB L2 cache, 2.0 GHz with burst up to 2.6 GHz), Intel AES-NI hardware support
- RAM & SSD all use a big brand memory and ssd/hdd with quality assurance

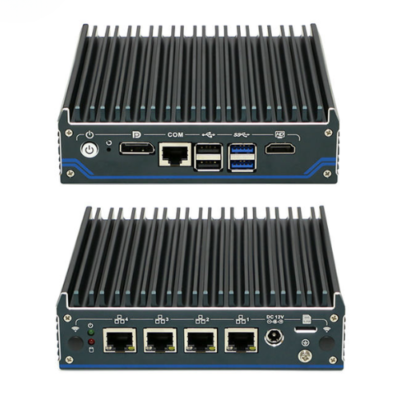

- Ports: 4x Intel 2.5 Gigabit Ethernet NIC ports, 2x USB 2.0 2xUSB3.1, 1x HD-MI, 1x DP –
- This device support Win10/11/ikuai/ Linux/pfsense
- Support Power-on, timed power-on, network wake-up, PXE boot, watchdog (level 0-255), TPM2.0 security encryption
- Applicated in Firewall, VPN, network server, network security, router and other fields.
Technical Specifications
| Material | Pure Aluminum |
| Processor | Intel Celeron J6412 (Quad-core, quad-threading, 2.0GHz, Max Turbo 2.6GHz) |
| CPU Architecture | Elkhart Lake |
| Memory | 1 x DDR4 3200MHz SODIMM Memory Slot, Max 32GB |
| Hard Drive Type | SSD |
| Graphics Card Chipset | Integrated Card |
| HDD Rotation Speed | SSD |
| Video Memory | 32 MB |
| Video Card | Intel UHD Graphics |
| Ram Type | DDR4 |
| CPU | J6412 Quad core quad threads |
| Chipset Type | Intel H110 |
| Hard Disk | 1xM.2 2280 slot,1×2.5” inch HDD/SSD |
| Display Chip | In-tel (R) UHD Graphics |
| Display Interface | 1 x DP (Max 4096×2160 @ 60Hz), 1 x HDMI (Max 3840×2160 @ 60Hz) |
| I/O | 1xPower switch,1Restart button 1xDP :4K 4096×2160 @ 60Hz 1HD-MI :3840×2160@ 60Hz 1xRJ45 COM(Support Console function) 4xLAN: In-tel i225-V 2.5G LAN 2xUSB2.0 2xUSB3.1 1xSIM card slot 1xDC IN |
| Expansion | 1 x M.2 2230 E-Key slot (Supports WiFi, BT), 1 x Mini PCIe Slot (Supports 4G modem, external SIM slot, supports USB signal WiFi/BT) |
| Other Functions | Power-on, Timed boot, Wake-on LAN, PXE boot, Watchdog (0-255 Level), TPM 2.0 Security Encryption |
| Power Supply | DC 12V Input |
| Certificates | CE, CCC, FCC Class A, ROHS |
| Applications | Firewall, VPN, Network Server, Network Security, Router, etc. |
| Operating System | Support Win10, Win 11 or Linux |
| Operating Temperature | 32°F to 122°F (0°C to +50°C) (HDD), -4°F to 140°F (-20°C to +60°C) (SSD), Surface air flow |
| Operating Humidity | 5% to 95% non-condensing |
| Dimensions | 5.67 in × 5.38 in × 1.65 in (144 mm × 136.7 mm × 42 mm) |
| Weight | 1.72 lb (0.78 kg) |
