Overview

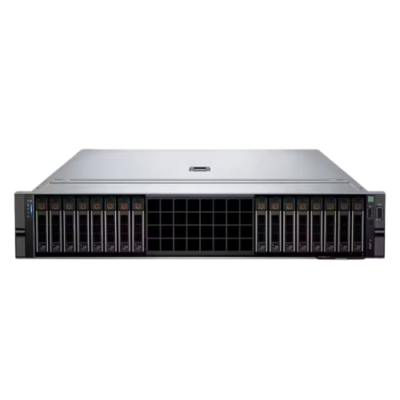

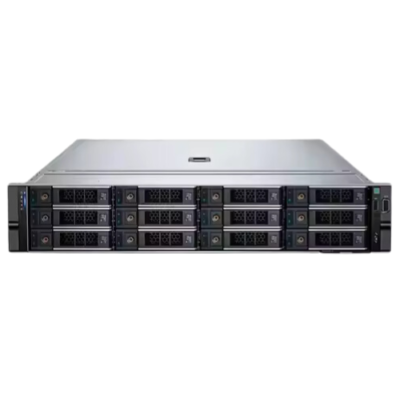

The Inventory Master Rackmount Server is a 2U, two-socket rack server. It adds up to two 4th generation Xeon processors with up to 32 cores per socket for faster performance. This device also accelerates in-memory workloads with up to 16 DDR5 RDIMMS up to 4800 MT per second. The Inventory Master Rackmount Server improves data throughput and reduces latency with support up to 8 I or O devices (up to available 6 PCIe slots, 1 OCP 3.0 networking slot, and 1 dedicated PERC slot). It has storage options that include up to 12 x (8.89 cm) 3.5-inch HDDs or SSDs, or up to 16 x (6.35 cm) 2.5-inch HDD or SSDs, plus up to 8 x NVMe drives.
Technical Specifications
| Processor | Up to two 4th Generation Xeon Scalable processor with up to 32 cores per processor |
| Memory | 16 DDR5 DIMM slots, supports RDIMM 1 TB max, speeds up to 4800 MT per second, supports registered ECC DDR5 DIMMs only |
| Storage Controllers | Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1, 2 x M.2 NVMe SSDs or USB External HBA (non-RAID): HBA355e Software RAID: S160 |
| Drive Bays | Front bays 0 drive bay Up to 8 x (8.89 cm) 3.5-inch SAS or SATA (HDD or SSD) max 160 TB Up to 12 x (8.89 cm) 3.5-inch SAS or SATA (HDD or SSD) max 240 TB Up to 8 x (6.35 cm) 2.5-inch SAS or SATA or NVMe (HDD or SSD) max 122.88 TB Up to 16 x (6.35 cm) 2.5-inch SAS or SATA (HDD or SSD) max 121.6 TB Up to 16 x (6.35 cm) 2.5-inch (SAS or SATA) + 8 x (6.35 cm) 2.5-inch (NVMe) (HDD or SSD) max 244.48 TB Rear bays Up to 2 x (6.35 cm) 2.5-inch SAS or SATA or NVMe (HDD or SSD) max 30.72 TB (supported only with 12 x (8.89 cm) 3.5-inch SAS or SATA HDD or SSD configuration) |
| Power Supplies | 1800 W Titanium 200 to 240 VAC or 240 HVDC 1400 W Platinum 100 to 240 VAC or 240 HVDC 1100 W Titanium 100 to 240 VAC or 240 HVDC 1100 W LVDC -48 to –60 VDC 800 W Platinum 100 to 240 VAC or 240 HVDC 700 W Titanium 200 to 240 VAC or 240 HVDC 600 W Platinum 100 to 240 VAC or 240 HVDC |
| Cooling Options | Air cooling |
| Fans | Standard (STD) fans or High-performance Silver (HPR) fans or High-performance Gold (VHP) fans, up to 6 hot swappable fans |
| Form Factor | 2U rack server |
| Embedded NIC | 2 x 1 GbE LOM |
| Network Options | 1 x OCP card 3.0 (optional) |
| GPU Options | 2 x 75 W SW, LP |
| Ports | Front Ports 1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 2.0, 1 x VGA Internal Ports: 1 x USB 3.0 (optional) Rear Ports 1 x Dedicated iDRAC Ethernet port, 1 x USB 2.0, 1 x USB 3.0, 1 x VGA, 1 x Serial (optional) |
| Size (H x W x D) | 3.41 in x 18.97 in x 28.4 in (86.8 mm x 482 mm x 721.62 mm) |
| Weight | Max 63 lb (28.6 kg) |
