Technical Specifications
| Material | High-quality all aluminum |
| Case Color | Metallic Black (Any color can be customized) |
| Processor | Intel Core i3 1215U (6 cores, 8 threads, Turbo 4.4 GHz) Intel Core i5 1235U (10 cores, 12 threads, Turbo 4.4 GHz) Intel Core i7 1255U (10 cores, 12 threads, Turbo 4.7 GHz) |
| BIOS | AMI EFI BIOS |
| Memory | 1 x DDR4 3200 SODIMM memory slot, Max 32 GB |
| Storage | 1 x M.2 2280 Slot, 1 x 2.5” HDD or SSD |
| Display Chip | Intel UHD Graphics |
| Display Interface | 2 x HD with 4K, Support synchronous or asynchronous display, Max. 4096×2160 @ Hz |

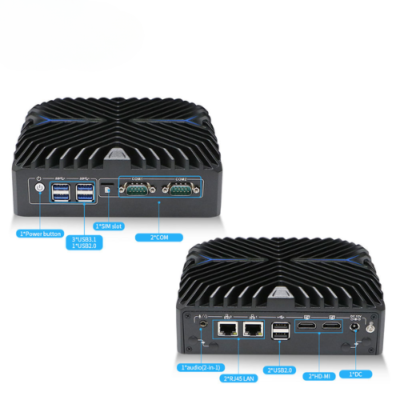

| Front I/O | 2 x COM port support RS232, 1 x SIM slot, 3 x USB 3.1, 1 x USB 2.0, 1 x Power button |
| Rear I/O | 1 x DC port, 2 x HD, 2 x USB 2.0, 2 x RJ45 LAN, 1 x audio interface (2-in-1) |
| Expansion | 1 x M.2 2280 M-Key slot (NVME), 1 x M.2 3052 B-key slot (USB 3.0, supports 4G/5G), External SIM card slot 1 x MINI-PCIE slot (supports WiFi, BT) |
| Network | 2 x RTL8111H Gigabit Ethernet |
| Other Functions | Auto power on when there is electricity, Timing boot, Wake On LAN, PXE boot, Watchdog (0 to 255 Level), TPM 2.0 security encryption |
| Power Supply | DC 12V |
| Application | Industrial Control, Industrial Automation, Robot, IoT gateway, Edge computing, Machine Vision, AGV/ARM, etc. |
| Work Temperature | 32°F to 104°F (0℃ to +40℃) (Commercial HDD), -4°F to 122°F (-20℃ to +50℃) (Industrial SSD), Surface air flow |
| Work Humidity | 5% to 95% non-condensing |
| Dimension | 6.69 in x 5.51 in x 2.28 in (170 mm x 140 mm x 58 mm) |
| Weight | 2.43 lb (1.1 kg) |
