Overview

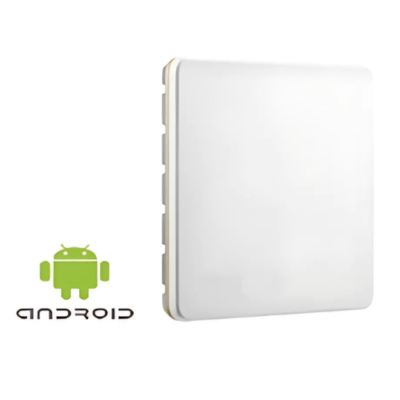

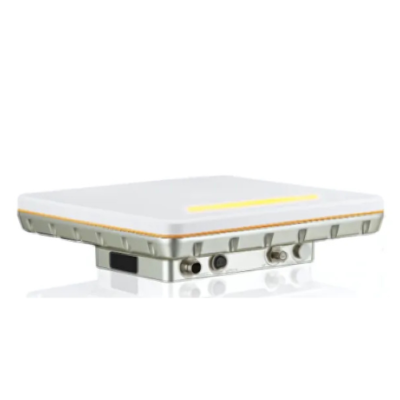

The Inventory Master IP67 rated UHF RFID integrated reader/writer has a 9dBi circular antenna built inside and provides a reading distance of up to 65 feet (20m). With IP 67 rating, it could be applied to kinds of severe environment and keep high performance and 24 hrs X 365 days up-time. This long range RFID integrated reader offers multiple interfaces including RS-232, RS-485, Wiegand, RJ45, PoE, Wi-Fi, Bluetooth, Digital I/O, RF antenna port.
Features
- Powerful: Impinj E710 platform and double power amplifier synthetic circuit
- Advanced: Max RFID module and antenna, reading distance up to 65 feet (20m)
- Excellent: Linux OS carrying ARM9 CPU keeps high performance and 24hrs X 365days no crash
- Humanist: Good expandability, could expand into 2 antenna for special application
- Industrial: IP67 rugged, applying to kinds of severe environment
- Optional Octa-core, open Android 9.0 OS
Technical Specifications:
| System Operation | Linux 2.6 / Android 9.0 |
| CPU | ARM9, 400MHz ; MT6765, Octa-Core 2.3GHz |
| Physical Size | 276mm × 276mm × 70mm |
| Weight | 1.75 kg |
| Housing Material | Aluminum + PC |
| Power Supply | DC 24V/2.5A (9V ~ 30V, 60W) or PoE (IEEE 802.3 at/bt) |
| Protection Level | IP67 |
| UHF RFID Protocol | ISO/IEC18000-6B, 6C / EPC C1Gen2; Supports MQTT, HTTP POST (Android version) |
| Frequency Range | USA: 902-928 MHz (FCC Part 15); EU: 865-868 MHz (ETSI EN 302208) |
| Output Power | 0 dBm to 35 dBm (±1 dBm) adjustable |
| Power Adjustment | 1 dBm step-by-step |
| Communication Interfaces | SKU#216031: RS-232, RS-485, Wiegand, RJ45, I/O, RF antenna port; Optional: PoE, Wi-Fi, BluetoothSKU#216031A: RS-485, Wiegand, RJ45, Wi-Fi, Bluetooth, I/O, RF antenna port; Optional: PoE |
| Reading Speed | >400 times/second |
| I/O Interface | 2 opto-coupler inputs / 2 relay outputs (DC 30V/2A, AC 125V/0.75A) |
| Anti-collision | Supports multi-tag and intensive reading |
| Software Features | RSSI support, antenna detection, online update, data filtering |
| Built-in Antenna | Circular 9dBi |
| VSWR | ≤1.4:1 |
| External Antenna | Supported via TNC antenna port |
| Reading Distance | 0–20 m (depends on environment) |
| Writing Distance | 0–8 m (depends on environment) |
| Working Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Atmospheric Pressure | 86 kPa to 108 kPa |
| Relative Humidity | 5% to 95% RH (non-condensing) |
